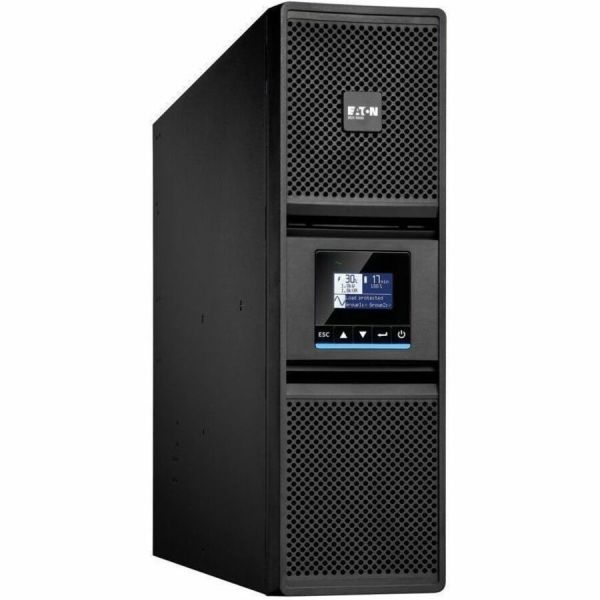

Eaton 9SX 5000VA Rack/tower UPS
1086135995
£3,668.98
Eaton 9SX 5000VA Rack/tower UPS
Eaton 9SX 5000VA Rack/tower UPS is available to buy in increments of 1
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Categories: General Purpose UPS, Default Category
| Network Management | Dry Contact |
|---|---|
| Waveform Type | Sine Wave |
| Backup/Run Time (Half Load) | 9.40 Minute |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Replaceable Battery | Yes |
| Application/Usage | Equipment |
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Hot Swappable | Yes |
| Input Voltage | 230 V AC/120 V AC |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Brand Name | Eaton |
| Plug/Connector Type | Hardwired |
| Input Voltage Range | 176 V AC - 276 V AC/100 V AC - 276 V AC |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13/IEC 60320 C19/Hardwired |
| Network (RJ-45) | No |
| Product Family | 9SX |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Energy Star | Yes |
| Product Color | Black |
| Receptacle Detail | 8 x IEC 60320 C13/3 x IEC 60320 C19/1 x Hardwired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)/Waste Electrical and Electronic Equipment Directive (WEEE)/Battery Directive |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9SX5KIRT3UG2
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9SX
Product Name: 9SX 5000VA Rack/tower UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacle Type:
Receptacle Detail:
Phase: Single Phase
Efficiency Detail...pan>: 99% (Eco Mode)
Application/Usage: Equipment
Features:
Power Description
Load Capacity (VA): 5 kVA
Load Capacity (Watt): 5 kW
Input Voltage:
Input Voltage Range:
Output Voltage:
Input Frequency:
Output Frequency:
Waveform Type: Sine Wave
Output Power Factor: 1
Display & Graphics
Display: LCD
Management
Network Management: Dry Contact
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): No
USB: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 15
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 5000 mAh
Backup/Run Time (Full Load): 3.50 Minute
Backup/Run Time (Half Load): 9.40 Minute
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Thermal Dissipation: 563 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 130 mm
Width: 440 mm
Depth: 684 mm
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 43.10 kg
Miscellaneous
Package Contents:
Certifications & Standards:
Energy Star: Yes
Environmental Compliance:
Warranty
Limited Warranty: 2 Year
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9SX5KIRT3UG2
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9SX
Product Name: 9SX 5000VA Rack/tower UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
- Hardwired
Receptacle Detail:
- 8 x IEC 60320 C13
- 3 x IEC 60320 C19
- 1 x Hardwired
Phase: Single Phase
Efficiency Detail...pan>: 99% (Eco Mode)
Application/Usage: Equipment
Features:
- Built-in Bypass Switch
- Advanced Battery Management (ABM+)
Power Description
Load Capacity (VA): 5 kVA
Load Capacity (Watt): 5 kW
Input Voltage:
- 230 V AC
- 120 V AC
Input Voltage Range:
- 176 V AC - 276 V AC
- 100 V AC - 276 V AC
Output Voltage:
- 230 V AC
- 200 V AC
- 208 V AC
- 220 V AC
- 240 V AC
Input Frequency:
- 50 Hz
- 60 Hz
- 40 Hz
- 70 Hz
Output Frequency:
- 50 Hz
- 60 Hz
Waveform Type: Sine Wave
Output Power Factor: 1
Display & Graphics
Display: LCD
Management
Network Management: Dry Contact
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): No
USB: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 15
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 5000 mAh
Backup/Run Time (Full Load): 3.50 Minute
Backup/Run Time (Half Load): 9.40 Minute
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Thermal Dissipation: 563 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 130 mm
Width: 440 mm
Depth: 684 mm
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 43.10 kg
Miscellaneous
Package Contents:
- 9SX 5000VA Rack/tower UPS
- 2 x Cable Glands
- 2 x IEC-IEC Output Cables (1.2m)
- USB Cable (1.8m)
- Cable Locking Systems
- Supports for Tower Mounting
- Rack-mounting Kit with Brackets and slides for UPS
- Safety Instructions
- Quick Start Guide
Certifications & Standards:
- LVD Directive (CB)
- EMC Directive
- Packaging Directive
- IEC/EN 62040-1
- IEC/EN 62040-2
- IEC/EN 62040-3
- CE
- cULus
- UKCA
- Cm
- Ukr
- RCM
- KCC
- BSMI
Energy Star: Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Battery Directive
Warranty
Limited Warranty: 2 Year
