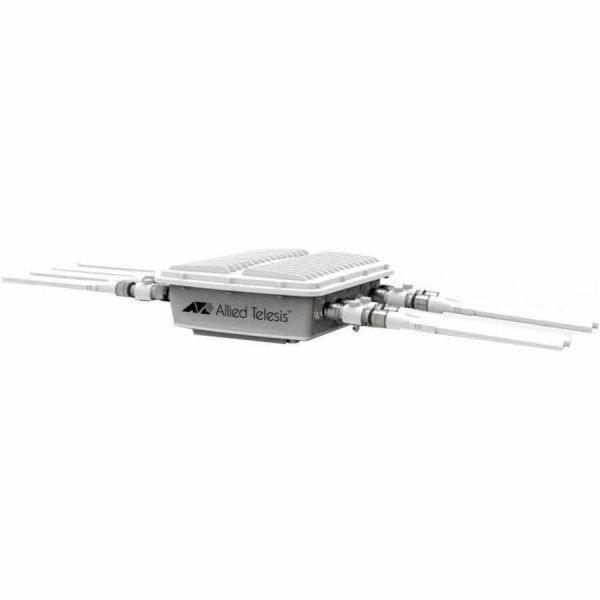

Allied Telesis TQ6702e GEN2 Wireless Access Point

Marketing Information

The TQ6702e GEN2 Wi-Fi 6 outdoor AP can be used in a wide variety of outdoor environments, with an operating temperature of -40°C to 65°C, and Ingress Protection (IP66/ IP67 rating) ensuring dust and moisture are not a problem. One 4x4 2.4GHz and one 8x8 5GHz radio deliver a raw capacity of 4.8 Gigabits.

The TQ6702e GEN2 supports multichannel, single-channel (Channel Blanket)1 and hybrid operation (the simultaneous use of multi-channel and Channel Blanket). This powerful solution combines maximum performance and seamless roaming to enable the most flexible wireless networks available, and the best possible user experience.

The power and efficiency of Wi-Fi 6, and Allied Telesis smart hybrid technologies, enable a wirele...ss Multi-Dimensional Exchange (MDX). The innovative MDX wireless solution enables user device tracking in real-time as well as historically for security and auditing purposes - and also supports restoring the wireless network to a past operational configuration if required.

For flexible outdoor deployment, a wall/pole mounting kit is included, and power is supplied via Power over Ethernet (802.11bt, PoE++). Eight omnidirectional antennas provide excellent wireless performance, and coverage can be extended using patch antennas and extension cables (sold separately) to further increase usage scenarios.

Key Features | Flexible Management

• The TQ6702e GEN2 can be managed in standalone mode using an intuitive web-based interface.
• Autonomous Wave Control (AWC) provide centralized management, and regularly analyses the wireless network, automatically optimizing AP settings to reduce interference and minimize coverage gaps- all with no user intervention.
• AWC wireless management is available on our Vista Manager EX network management platform, and from Vista Manager mini running on a number of switch and firewall products.

Channel Blanket Hybrid Operation

• The TQ6702e GEN2 support operation in multichannel, single-channel (Channel Blanket) and hybrid (multi-channel and Channel Blanket) modes, for the most flexible wireless solution available.
• Multi-channel operation provides maximum throughput for high-bandwidth clients, while Channel Blanket operation supports seamless roaming for dynamic environments like industrial manufacturing and warehouses, as all APs appear as a single virtual AP.
• Hybrid mode combines the best of both architectures, enabling an innovative wireless solution that maximizes performance for a superior user experience.

AWC-SC (Smart Connect)

• AWC-SC enables plug-and-play wireless network growth, as new APs only need a power connection, and will then automatically create resilient wireless uplink connections to other APs.
• AWC-SC supports dynamic environments with multi-path uplinks, and provides an ideal solution for one-time deployments like conferences

Specifications
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: ATTQ6702EGEN200
Manufacturer Website Address: http://www.alliedtelesis.co.uk
Brand Name: Allied Telesis
Product Model: TQ6702e GEN2
Product Name: TQ6702e GEN2 Wireless Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 8
Number of External Antennas: 8
Indoor/Outdoor: Indoor/Outdoor
Wireless Transmission Speed: 4.80 Gbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:

• 64-bit WEP
• 128-bit WEP
• WPA
• WPA2
• AES-CCMP
• TKIP
• WPA3
• WPA-ENT
• WPA2-ENT
• WPA3-ENT
• WPA3-Personal
• WPA2-PSK

Ingress Protection (IP) Rating: IP67
Interfaces/Ports
Ethernet Technology: 5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Network & Communication
Wi-Fi Generation: Wi-Fi 6
Communication Protocols:

• HTTP
• HTTPS
• NTP
• SNMPv1/v2c/v3
• DHCP

Physical Characteristics
Form Factor:

• Wall Mountable
• Standalone
• Pole-mountable

Antenna Form Factor: External
Height: 90 mm
Width: 257 mm
Depth: 227 mm
Weight (Approximate): 4.40 kg
Miscellaneous
Package Contents:

• TQ6702e GEN2 Wireless Access Point
• Wall/Pole Mounting Kit
• External Antenna Kit with Four Detachable Antenna

Certifications & Standards:

• Wi-Fi certified
• CE
• RCM
• IC
• FCC
• WPC (For India)
• OFCA (For Hong Kong)
• NBTC (For Thailand)
• MIC (For Vietnam)
• SIRIM (For Malaysia)
• NCC (For Taiwan)
• SRRC (For China)
• IDA (For Singapore)
• EN 62368-1
• UL 62368-1
• UL 2043
• UL 0950-22
• EN 60950-22
• CB 62368-1
• CB 90950-1
• IEC 60950-22
• EN 489-1 301
• EN 489-17 301
• EN 55024
• EN 55032, Class B
• EN 55035
• EN 60601-1-2
• EN 61000-3-2, Class A
• EN 61000-3-3
• EN 61000-4-2
• EN 61000-4-3
• EN 61000-4-4
• EN 61000-4-5
• EN 61000-4-6
• EN 61000-4-8
• EN 61000-4-11
• VCCI Class B
• FCC Part 15 Subpart B Class B
• RCM AS/NZS CISPR 32
• Outdoor Enclosure approvals
• IEC 60068-2-52 (Salt Mist test)
• IEC 60068-2-5 (Solar Radiation (Sunshine) test / Ultraviolet test)
• IEC 60068-2-5 (Sun Exposure test)
• IEC 60529 (IP66/IP67 test)
• Radio equipment
• ARIB STD-T66
• ARIB STD-T71
• AS/NZS 4268
• EN 328 300
• EN 893 301
• FCC 47 CFR Part 15, Subpart C
• FCC 47 CFR Part 15, Subpart EIEEE 802.1AX-2008 Link Aggregation (static and dynamic)
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3bz 2.5GBASE-T and 5GBASE-T ("multi-gigabit")
• IEEE 802.3x Flow Control
• IEEE 802.3bt Power over Ethernet++
• IEEE 802.1Q VLAN Tagging
