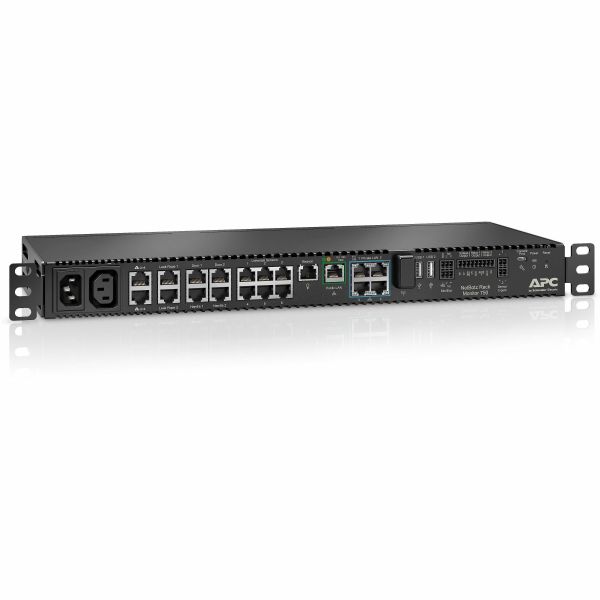

APC by Schneider Electric NetBotz Rack Monitor 750

Marketing Information

The NetBotz Rack Monitor 750 provides integrated surveillance, sensing, access control, and advanced alerting for IT environments of all sizes, from single-rack edge networks to large data centers. The NetBotz 750 offers an active monitoring solution designed to protect against environmental threats and unauthorized access risks that can cause downtime to IT infrastructure, in both Edge Compute and Data Center environments. With its integrated suite of sensors, access control pods, and the newly introduced HD Camera Pod 165, the NetBotz 750 safeguards environments with surveillance and flexible alerting based on user-definable thresholds. Intentional or malicious access events not only threaten compute availability, but also leave enterpri...ses vulnerable to costly compliance violations. The NetBotz 756 provides integrated sensing, surveillance, and badged rack-access control to help mitigate these risks through a wide array of compatible sensors, camera clip capture and storage, and configurable alarming.

More from the Manufacturer

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: NBRK0750
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetBotz
Product Model: 750
Product Name: NetBotz Rack Monitor 750
Packaged Quantity: 1 Each
Product Type: Environmental Monitoring System
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Height: 43 mm
Width: 432 mm
Depth: 178 mm
Weight (Approximate): 2.45 kg
Mounting Location:

• Front
• Rear
• Horizontal

Mounting Preference: No Preference
Rack Height: 1U
Miscellaneous
Additional Information:

Environmental

• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0-10000ft (0-3000meters)
• Storage Temperature: -15 - 65 °C
• Storage Relative Humidity: 0 - 95 %
• Storage Elevation: 0-50000ft (0-15000meters)

Conformance

• 2014/30/EU
• AS/NZS 3548 (C-Tick) Class A
• CE
• CSA C22.2 No. 60950-1-03
• EMC Directive 2004/108/EC
• FCC Part 15 Class A
• ICES-003
• UL 60950-1
• VCCI Class A

General

• Camera Frame Rate: Up to 30fps
• Type of Camera Pods Supported: Rack Sensor Pod 150, Room Sensor Pod 155
• Camera Resolution: Up to 1280x1024
• Type of External Sensors Supported: 0-5V, Door Contact, Dry Contact, Humidity, Smoke, Fluid Spot Leak, Temperature, Vibration
• Number of Additional Camera Pods: 6.0
• Number of Additional Sensor Pods: 78.0
• External Sensor Ports: 4

Application/Usage: Surveillance
Compatibility:

APC by Schneider Electric Devices:

• NBPD0165
• NBHN125
• NBES0303
• NBPD0165
• NBPD0171
• NBPD0150

Product Take Back Program: No
REACH free of SVHC: No
Mercury Free: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=NBRK0750_ROHS_DECLARATION&p_FileName=NBRK0750KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500649&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500649&lang=en-us
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin: Philippines
For Country/Region: United States
Warranty
Additional Warranty Information: 2 years
