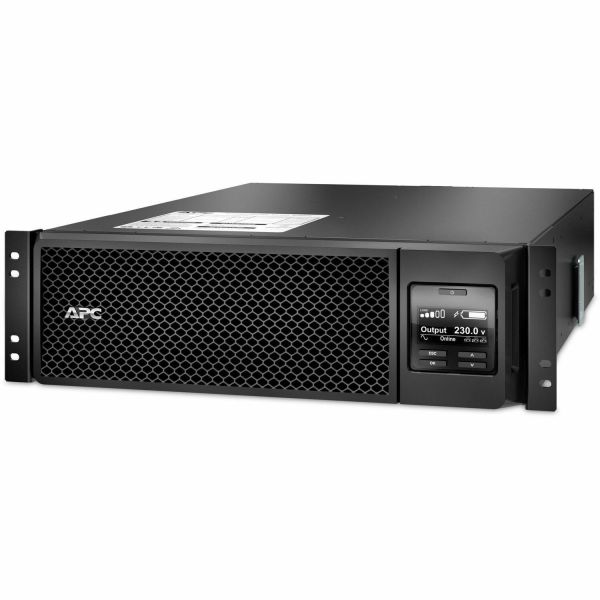

APC by Schneider Electric Smart-UPS 5000VA Rack-mountable UPS

Marketing Information
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStr...uxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT5KRMXLW-HW
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SRT
Product Name: Smart-UPS 5000VA Rack-mountable UPS
Packaged Quantity: 1 Each
Product Type: Double Conversion Online UPS
Technical Information
Receptacle Type:

• Hard Wire 3-wire (2PH + G)
• Hard Wire 3-wire (H N + G)

Receptacle Detail:

• 1 x Hard Wire 3-wire (H N + E)
• 1 x Hard Wire 3-wire (2PH + G)

Cord Length: 91 cm
Power Description
Load Capacity (VA): 5 kVA
Load Capacity (Watt): 4.50 kW
Input Voltage:

• 208 V
• 230 V

Output Voltage:

• 208 V AC
• 230 V AC

Battery Information
Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 1.50 Hour
Physical Characteristics
Color Family: Black
Height: 130 mm
Width: 432 mm
Depth: 719 mm
Rack Height: 3U
Form Factor: Rack-mountable
Mounting Preference: Lower
Mounting Location: Front
Weight (Approximate): 55.79 kg
Miscellaneous
For Country/Region: United States
Package Contents:

• Smart-UPS 5000VA Rack-mountable UPS
• CD with Software
• Documentation CD
• Installation Guide
• Materials Rack
• Rack Mounting Support Rails
• Removable Feet
• Temperature Probe
• User Manual
• Warranty Card

Energy Star: Yes
Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
Mercury Free: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT5KRMXLW-HW_ROHS_DECLARATION&p_FileName=SRT5KRMXLW-HWKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135484&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135484&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
California Proposition 65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star URL: https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC: No
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
