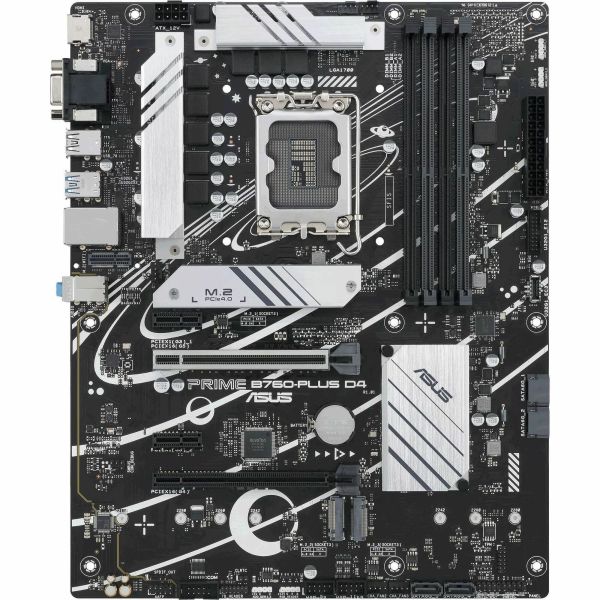

Asus PRIME B760-PLUS D4 Desktop Motherboard

Marketing Information

ASUS Prime B760-PLUS D4, an Intel^®B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI^®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, Thunderbolt™ (USB4^®) support, Aura Sync

• Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel^®LGA 1700 Socket:Re...ady for 14^th, 13^thand 12^th Gen Intel^®processors
• Ultrafast Connectivity:PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 1 Type-C^®and Thunderbolt™ (USB4^®) header support
• Comprehensive Cooling:VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem:Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

PRIME B760-PLUS D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1CW0M1EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: Prime
Product Model: B760-PLUS D4
Product Name: PRIME B760-PLUS D4 Desktop Motherboard
Product Type: Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 14th Gen
• 13th Gen
• 12th Gen

Processor Supported:

• Core
• Pentium Gold
• Celeron

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 5066 MHz
• 5000 MHz
• 4800 MHz
• 4600 MHz
• 4400 MHz
• 4266 MHz
• 4000 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3400 MHz
• 3333 MHz
• 3200 MHz
• 3000 MHz
• 2933 MHz
• 2800 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
I/O Expansions
Total Number of Expansion Slots: 4
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 2
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 305 mm
Depth: 244 mm
Miscellaneous
Package Contents:

• PRIME B760-PLUS D4 Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 2 x Screw Packages for M.2 SSD
• 1 x User guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
