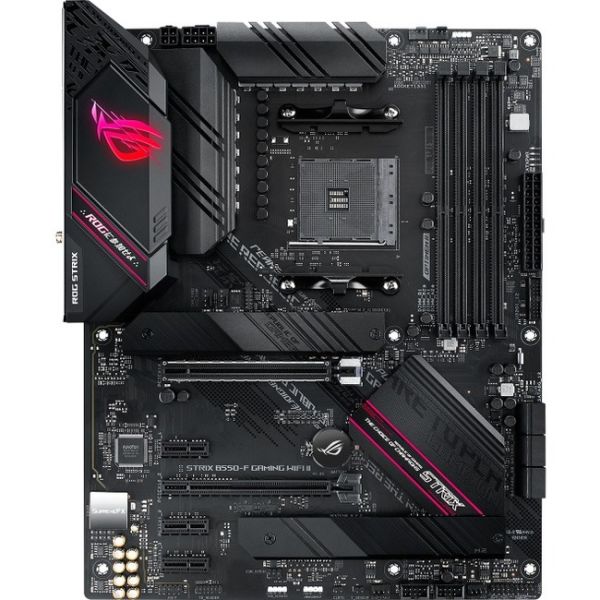

Asus ROG STRIX B550-F GAMING WIFI II Gaming Desktop Motherboard

Marketing Information

AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting

• AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
• Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
• Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality a...lloy chokes and durable capacitors
• Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
• DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
• Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.

Performance | BUILT FOR PERFORMANCE GAMING | ADVANCE YOUR GAMING IMMERSION

ROG Strix B550-F Gaming WiFi II is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

PCIE 4.0-READY

ROG Strix B550-F Gaming WiFi II features two M.2 slots, one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

ALL-ROUND PERFORMANCE

ROG Strix B550-F Gaming WiFi II provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB19V0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B550-F GAMING (WI-FI)
Product Name: STRIX B550-F GAMING WIFI II Gaming Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported:

• Ryzen 3
• Ryzen 5
• Ryzen 7
• Ryzen 9
• Ryzen 3 PRO
• Ryzen 5 Pro
• Ryzen 7 PRO
• Ryzen 9 PRO

Multi GPU Supported: CrossFireX
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 3733 MHz
• 3866 MHz
• 4600 MHz
• 5100 MHz
• 4666 MHz
• 2133 MHz
• 4266 MHz
• 3466 MHz
• 3400 MHz
• 2666 MHz
• 4866 MHz
• 4800 MHz
• 4133 MHz
• 4000 MHz
• 2400 MHz
• 3200 MHz
• 3600 MHz
• 2800 MHz
• 4400 MHz
• 4466 MHz
• 2933 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 10
• 1

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
