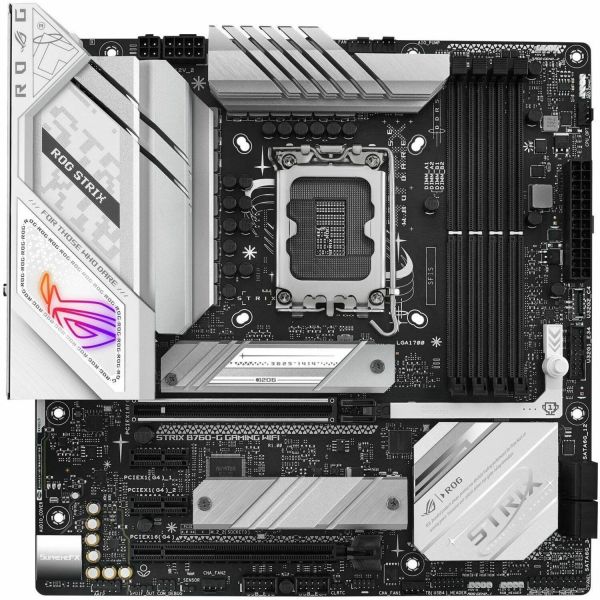

Asus ROG STRIX B760-G GAMING WIFI GAMING Desktop Motherboard

Marketing Information

ROG STRIX B760-A GAMING WIFI

Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13^thGen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.

DIY-FRIENDLY FEATURES | PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE

A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.

Power Design | TEAMED POWER ARCHITECTURE

12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

8+4 PIN PROCOOL POWER CONNECTORS

Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1EQ0M1EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B760-G GAMING WIFI
Product Name: STRIX B760-G GAMING WIFI GAMING Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 14th Gen
• 13th Gen
• 12th Gen

Processor Supported:

• Core
• Celeron
• Pentium Gold

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 7800 MHz
• 7600 MHz
• 7400 MHz
• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 4
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0

Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 9
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Onboard S/PDIF Header: Yes
Physical Characteristics
Color Family: Dual Colour
Product Color:

• White
• Silver

Form Factor: Micro ATX
Width: 243.8 mm
Depth: 243.8 mm
Weight (Approximate): 1.50 kg
Miscellaneous
Package Contents:

• STRIX B760-G GAMING WIFI GAMING Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x Rubber Package(s) for M.2
• 1 x Q-Latch package(s) for M.2
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x User manual

Brand Compatibility: Intel
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
