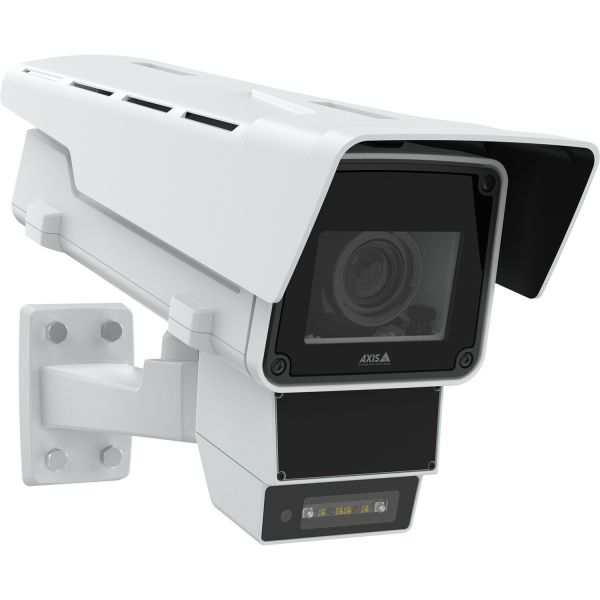

AXIS Q1656-DLE Radar-Video Fusion Camera

Marketing Information

This unique device fuses two powerful technologies to deliver next-level detection and visualization for reliable widearea intrusion protection 24/7. Video and radar analytics come together in AXIS Object Analytics to provide precise localization and object classification powered by deep learning and distance and speed measurements based on an object's radar signature and movement characteristics. By default, our intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing

> Two powerful technologies in one device

> Increased scene intelligence

> Accur...ate detection 24/7

> Built-in cybersecurity features

> Premium Axis Q-line camera functionality

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02420001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: Q16
Product Model: Q1656-DLE
Product Name: Q1656-DLE Radar-Video Fusion Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 38 m
Night Vision Type: Infrared
Camera Iris: P-iris
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/1.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 96°-44° Vertical field of view: 63°-26°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• Zipstream
• H.265
• Motion JPEG
• H.264 (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)
• H.264

Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.90 mm
Maximum Focal Length: 10 mm
Lens Included: Yes
Optical Zoom: 3.9x
Exposure
Longest Shutter Speed: 1 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• HTTP
• HTTPS
• TLS
• QoS
• FTP
• SFTP
• CIFS/SMB
• SMTP
• Bonjour
• UPnP
• SNMP (v1/v2c/v3)
• DNS
• DynDNS
• NTP
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SOCKS
• SSH
• LLDP
• MQTT v3.1.1
• UDP/TCP/TLS

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 25.50 W
Input Voltage:

• 10 V DC
• 28 V DC

Power Source Type:

• PoE
• DC

Physical Characteristics
Mount Type: Wall Mount
Form Factor: Box
Durability: Impact Resistant
Color Family: White
Product Color: White
Weight (Approximate): 5 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 60°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Electronic Image Stabilization
• Audio Detection
• Day/Night
• Alarm Detection
• Auto Tracking
• Video Management System
• Motion Detection
• PTZ
• Rugged Design

Impact Protection Rating: IK08
Ingress Protection Rating: IP66
