Cisco Catalyst C9200CX-12T-2X2G Ethernet Switch

Marketing Information

Introduction

Extend intent-based networking everywhere

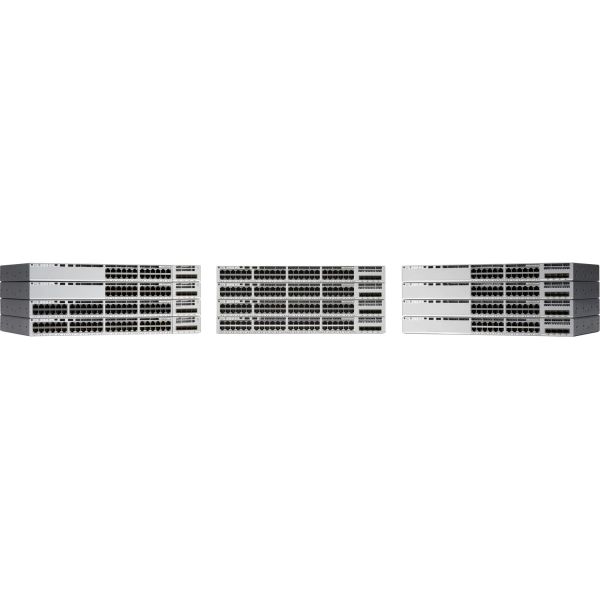

Cisco^® Catalyst^® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-...based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.

Product overview

Product highlights

• Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
• Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
• Flexible downlink options with data, PoE+ or mGig
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
• Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9200CX-12T-2X2G-E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9200
Product Model: C9200CX-12T-2X2G
Product Name: Catalyst C9200CX-12T-2X2G Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 12
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 15 x Gigabit Ethernet Network
• 2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 1000Base-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.3
• IEEE 802.1x
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z

Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Adapter
Physical Characteristics
Form Factor:

• Rack-mountable
• DIN Rail Mountable
• Wall Mountable
• Compact
• Under Table

Height: 43.9 mm
Width: 269.2 mm
Depth: 165.1 mm
Weight (Approximate): 1.81 kg
Miscellaneous
Application/Usage: Business
Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
