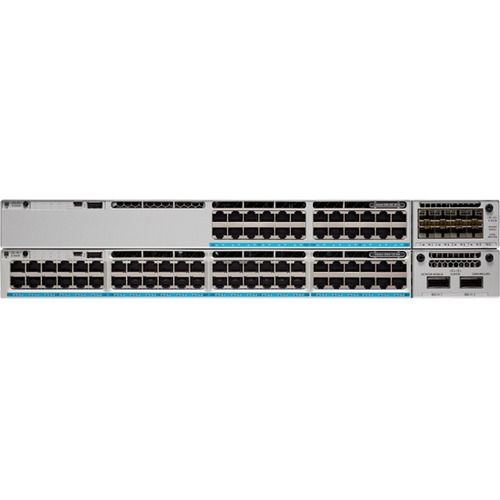

Cisco Catalyst 9300 48-port 5G UPOE, Network Advantage

Marketing Information

The Cisco^® Catalyst^® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and mo...re memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise^® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower^®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE^®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access^™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The foundation of Software-Defined Access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

• Simplified device deployment
• Unified management of wired and wireless networks
• Network virtualization and segmentation
• Group-based policies
• Context-based analytics

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9300-48UN-A
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9300
Product Model: C9300-48UN
Product Name: Catalyst 9300 48-port 5G UPOE, Network Advantage
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 48 x 5 Gigabit Ethernet Network
• 1 x Uplink

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: 5 Gigabit Ethernet
Network Technology: 5GBase-T
I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: Uplink Module
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 43.9 mm
Width: 444.5 mm
Depth: 485.1 mm
Weight (Approximate): 9.09 kg
