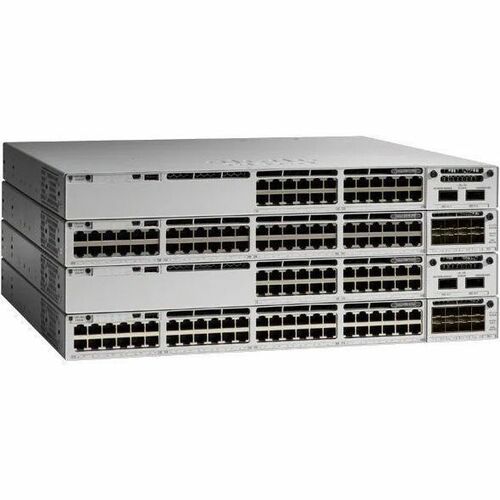

Cisco Catalyst C9300L-48UXG-4X Ethernet Switch

Marketing Information

Built to reimagine connection, reinforce security and redefine experience

Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.

The many industry's first include:

• Up to 1TB of stacking bandwidth:Wi...th Stackwise-1T, Catalyst 9300 switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture
• Flexible and dense uplink offeringswith 100G, 40G, 25G, Multigigabit, 10G, and 1G modular uplinks
• Mixed Stacking with Backward Compatibility- Stack your Catalyst 9300X fiber switches with Catalyst 9300 and Catalyst 9300X Multigigabit switches, bringing stackable high-speed fiber to the access
• Highest Multigigabit Ports:With standalone and Stackwise-1T, Catalyst 9300X models enable 48 mGig ports in standalone and 448 mGig ports with an 8-member stack
• Highest 90W UPOE+ Density:Enable your OT/IT needs with up to 36 ports of 90W UPOE+ for standalone or 288 ports of 90W UPOE+ with a 8-member stack.
• StackPower with Backward Compatibility:Enable power resiliency with higher power budgets in mixed Catalyst 9300 and Catalyst 9300X stack.
• 100G IPsec in hardware:With the new 2.0sec UADP ASIC, the Catalyst 9300X comes with 100G line rate IPsec to enable various options for new edge connectivity
• Secure Tunnel connectivity:With the new edge, the C9300X enables secure connections to Secure Internet Gateway, Cloud Service Providers and Site to Site connectivity using IPsec tunnel with AES-256 Encryption and speeds up to 100G.
• Enhanced Application Hosting:With 2x capacity and additional RAM, QAT, and 2 x 10G AppGig Ports, multiple Cisco Signed performance savvy applications can be hosted on Catalyst 9300X
• ThousandEyes Enabled:End-to-end visualization of the path from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses)
• Investment Protection:Catalyst 9300X redundant fans and power supplies, data stack and StackPower cables are backward compatible with the Catalyst 9300.

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9300L48UXG4XM
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9300
Product Model: C9300L-48UXG-4X
Product Name: Catalyst C9300L-48UXG-4X Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet UPoE
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 10GBase-X
• 10/100/1000Base-T

I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.1ae
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1p
• IEEE 802.1AVB
• IEEE 802.1x
• IEEE 802.3bt
• IEEE 802.3ad
• IEEE 802.3ae
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.1ad
• IEEE 802.1Q
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3bz
• IEEE 802.3an
• IEEE 802.3

Management & Protocols
Manageable: Yes
Reliability
MTBF: 273820 Hour
Power Description
PoE (RJ-45) Port: Yes
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 715 W
Plug/Connector Type: IEC 60320 C16
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 445 mm
Depth: 409 mm
Weight (Approximate): 7.65 kg
Miscellaneous
Package Contents:

• Catalyst C9300L-48UXG-4X Ethernet Switch
• 1 x Power Supply
• 3 x Field-replaceable Fans

Certifications & Standards:

• UL 60950-1
• CAN/CSA-C222.2 No. 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950.1
• IEEE 802.3
• 47 CFR Part 15
• EN 300 386 V1.6.1
• EN 55032 Class A
• CISPR 32 Class A
• EN61000-3-2
• EN61000-3-3
• ICES-003 Class A
• TCVN 7189 Class A
• V-3 Class A
• CISPR 35
• EN 300 386
• EN 55035
• TCVN 7317
• V-2/2015.04
• V-3/2015.04
• CNS13438
• KN32
• KN35
• QCVN 118:2018/BTTTT
• VCCI-CISPR 32 Class A

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: Lifetime
