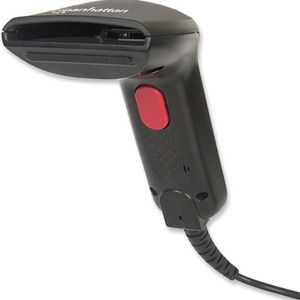

Manhattan Contact CCD Barcode Scanner

Marketing Information

Improve speed, accuracy and productivity

Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its USB cable interface integrates with most PCs without an external power supply. With a scan rate of 100 scans per ...second and an accurate read range of up to 60 mm (2.4 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 178488
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Model: 178488
Product Name: Contact CCD Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

• UPC/EAN/JAN
• Code 39
• Code 39 Full ASCII
• Code 11
• Matrix 25
• Code 128
• Code 93
• Interleave 25
• Codabar/NW7
• MSI/PLESSEY
• China Postage
• GS1 DataBar (RSS code)

Image Sensor Type: CCD
Scan Rate: 100 scan/s
Maximum Scan Resolution: 0.13 mm
Scanning Distance: 60.96 mm
Maximum Ambient Light: 5000 lux
Interfaces/Ports
Host Interface:

• Keyboard Wedge
• Serial
• USB

Power Description
Input Voltage: 5 V DC
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Height: 177.8 mm
Width: 76.2 mm
Depth: 63.5 mm
Weight (Approximate): 120 g
Miscellaneous
Package Contents:

• Contact CCD Barcode Scanner
• User Manual

Additional Information:

USB Cable separate

Application/Usage:

• Industrial
• Logistics
• Warehouse

Platform Supported: PC
Certifications & Standards:

• FCC
• CE

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
