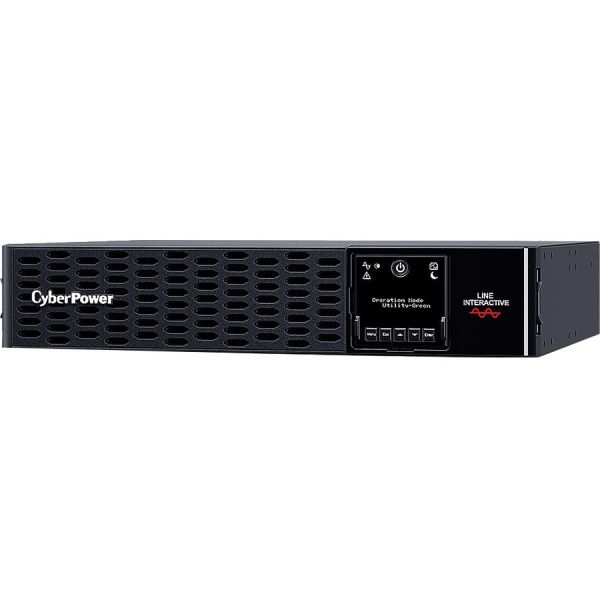

CyberPower Smart App PR3000ERTXL2U 3000VA Rack/Tower UPS

Marketing Information

CyberPower PR3000ERTXL2U with rackmount design guarantees power backup protection for home theatre systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.

The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. ...The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PR3000ERTXL2U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Smart App
Product Model: PR3000ERTXL2U
Product Name: Smart App PR3000ERTXL2U 3000VA Rack/Tower UPS
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type:

• IEC 60320 C20
• AU

Receptacle Type:

• IEC 60320 C19
• IEC 60320 C13

Receptacle Detail:

• 6 x IEC 60320 C13
• 2 x IEC 60320 C19

Number of Battery & Surge Outlets: 8
Number of Critical Load Outlets: 4
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage:

• Home Theatre
• Multimedia Device
• IT Equipment
• Computer
• Workstation
• Network Device
• Telecommunication
• Surveillance System

Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 3 kW
Input Voltage: 230 V AC
Input Voltage Range: 159 V AC - 288 V AC
Output Voltage:

• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 2430 J
Management
Network Management: SNMP/HTTP Remote Monitoring
Alarm:

• Battery Mode
• Low Battery
• Overload
• Over-charge
• Overheat

Controls/Indicators
Status Indicators:

LCD Information Display:

• Operation Type
• Power Status
• Battery Status
• Load Status
• Fault & Warning
• Other Information
• Event & Log

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• UPS Fault
• Night Mode

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 1.70 Minute
Backup/Run Time (Half Load): 7.10 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 15 km
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 57.5 dB(A)
Thermal Dissipation: 432000 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 86.4 mm
Width: 434.3 mm
Depth: 500.4 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 32.79 kg
Miscellaneous
Energy Star: Yes
