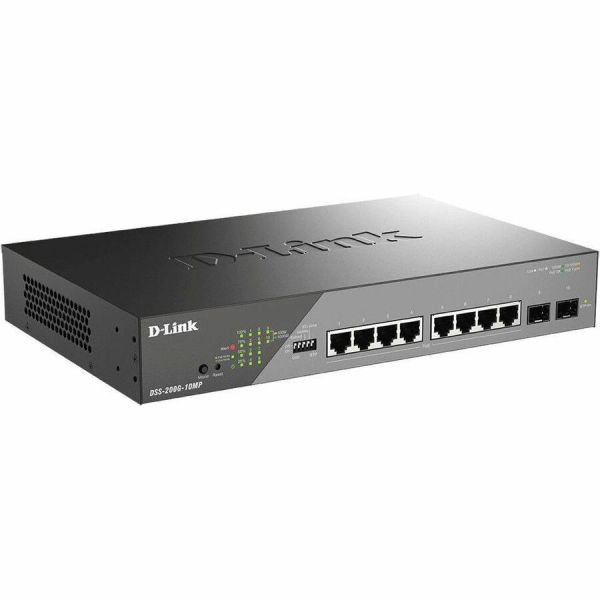

D-Link DSS-200G-10MP Ethernet Switch

Marketing Information

The DSS-200G Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G Series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.

Easy to Deploy

An interactive setup wizard removes the complexity from installing the switch for the first time. It allows you to choose the web interface mode (Standard or Surveillance), the IP address allocation method (static or DHCP), and the admin...istrator user name and password. This completes the initial setup of the switch and automatically configures features such as Loop Detection, DHCP Snooping, SNMP and Surveillance VLAN. An informative quick start guide shows you how to use the network diagram, and a network overview is displayed on the next page. D-Link and 3rd party devices are automatically detected and shown on the network overview page for easy administration.

Surveillance Traffic Optimization

The DSS-200G Series supports the automatic Surveillance VLAN feature. This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network. The ensures security of the data, but also gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.

Intuitive Web Interface

A redesigned Surveillance interface makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch setup, allowing the user to choose the interface that best suits their requirements. A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and third party IP cameras and Network Video Recorders (NVRs). With monitoring, management, and troubleshooting tools built into a single interface, the DSS200G Series provides everything you need to manage your surveillance network.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DSS200G10MPB
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Series: DSS-200G
Product Model: DSS-200G-10MP
Product Name: DSS-200G-10MP Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet Network PoE
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.3u
• IEEE 802.3bt
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1w

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 130 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 160.20 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Desktop
• Rack-mountable

Height: 44 mm
Width: 280 mm
Depth: 180 mm
Miscellaneous
Package Contents:

• DSS-200G-10MP Ethernet Switch
• 19-Inch Rack-Mounting Brackets

Application/Usage:

• Surveillance
• IP Camera
• VoIP Phone
• Wireless Access Point
• Enterprise
• Business
