D-Link DUB-M520 Docking Station

Marketing Information

Full Compatibility

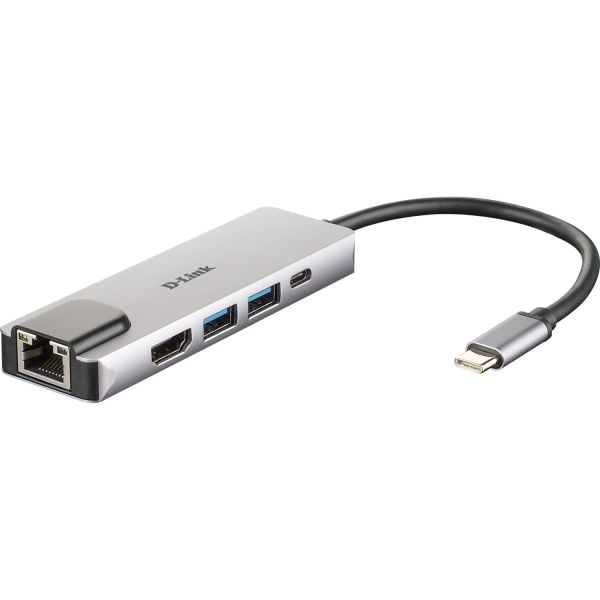

Just plug the DUB-M520 5-in-1 USB-C™ Hub into an available USB Type-C port and you're ready to connect to a network with the reliability of a wired connection. You can also connect up to two more USB devices, as well as a second display.

Now you won't have to put up with laggy wireless video streaming every time you present your visuals on a larger screen.

Easy to Use

The DUB-M520 5-in-1 USB-C™ Hub connects to your computer's USB Type-C port and is ready to run as soon as it's plugged in. The plug-and-play design ensures you never have to fiddle around with any configuration settings or install any additional software for your computer.

For extra convenience, ...the adapter's compact design means that you can easily slip the DUB-M520 into your pocket or laptop bag and take it with you.

Fully-Featured HDMI Video Connectivity

The DUB-M520 5-in-1 USB-C™ Hub plugs into any available USB Type-C or Thunderbolt-3 port on your computer and enables you to connect to an HDMI display with a resolution of up to 4K Ultra HD at 30 frames per second.

Gigabit Ethernet Connectivity

The DUB-M520 5-in-1 USB-C™ Hub lets you connect to an Ethernet network at speeds up to 1 Gbps for up to ten times faster transfer speeds compared to previous standards. High-speed Gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device.

Where wireless connectivity is inconsistent or unavailable, this USB hub offers a seamless wired alternative.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DUB-M520
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Model: DUB-M520
Product Name: DUB-M520 Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Number of Displays Supported: 2
Screen Mode Supported: 4K
Supported Resolutions: 3840 x 2160
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Number of USB 3.1 Gen 1 Type-A Ports: 2
Number of USB Type-A Ports: 2
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C port supporting Power Delivery
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of HDMI Ports: 1
HDMI: Yes
HDMI Version: 1.4
Software
Operating System Supported:

• Windows
• macOS
• ChromeOS

Physical Characteristics
Form Factor: Portable
Height: 103 mm
Width: 31 mm
Depth: 11 mm
Weight (Approximate): 49 g
