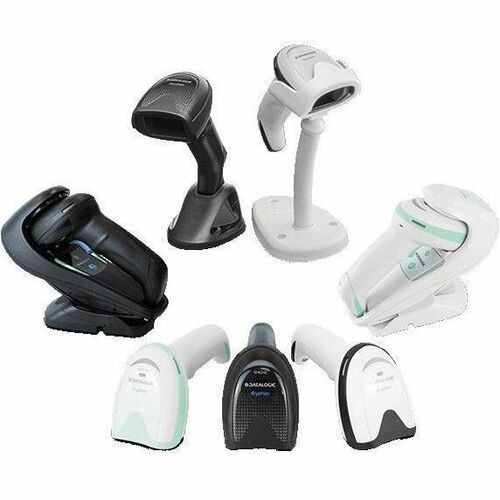

Datalogic Gryphon 4500 GBT4500 Barcode Scanner Kit

£602.93
Limited Stock: Only 0 available
Only 5 left
Datalogic Gryphon 4500 GBT4500 Barcode Scanner Kit
Datalogic Gryphon 4500 GBT4500 Barcode Scanner Kit is available to buy in increments of 1
Application/Usage Industrial/Retail/Healthcare/Transportation/Manufacturing/Commercial Service
Host Interface USB/Serial/Keyboard Wedge
Product Type Barcode Scanner Kit
Limited Warranty 3 Year
Connectivity Technology Wireless
Form Factor Handheld
Brand Name Datalogic
Scanning Distance 398.78 mm
Light Source Laser
Bluetooth Yes
Scanner Range High Density
Scan Pattern Area/Omni-directional
Image Sensor Type Imager
Product Family Gryphon 4500
Radio Frequency Yes
Product Color Black/White
Color Family Dual Colour
Ingress Protection (IP) Rating IP52
Cable Type Included USB
Scanning Capability 1D/2D
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)/Restriction of Hazardous Substances (RoHS)
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon

Description

Marketing Information

IMAGING TECHNOLOGY

The Gryphon 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

WIRELESS COMMUNICATIONS

Featuring Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.

WIRELESS CHARGING ...>

One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

SIMPLE TO USE AND DEPLOY

The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking. Datalogic's Motionix motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.


Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: GBT4500BKBTK1HDD
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Gryphon
Product Series: 4500
Product Model: GBT4500
Product Name: Gryphon 4500 GBT4500 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
  • 1D
  • 2D

Barcode Symbology Supported: 1D:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal codes:
  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Digital Watermarking:
  • Digimarc Barcodes

Light Source: Laser
Image Sensor Type: Imager
Depth of Field:
  • 5.0 to 15.0 cm / 2.0 to 5.9 in @ Code 39
  • 0.5 to 25.0 cm / 0.2 to 9.8 in @ Code 39
  • 2.0 to 27.0 cm / 0.8 to 10.6 in @ Data Matrix
  • 2.0 to 23.5 cm / 0.8 to 9.3 in @ Data Matrix
  • 1.0 to 40.0 cm / 0.4 to 15.7 in @ EAN-13
  • 3.0 to 12.0 cm / 1.2 to 4.7 in @ EAN-13
  • 0.5 to 31.0 cm / 0.2 to 12.2 in @ PDF417
  • 2.0 to 25.0 cm / 0.8 to 9.8 in @ PDF417

Scan Pattern:
  • Area
  • Omni-directional

Scanner Range: High Density
Scanning Distance: 398.78 mm
Features:
  • Beep
  • Vibration
  • Notification LED

Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 889 mm/s
Image Formats:
  • BMP
  • JPEG
  • TIFF

Maximum Ambient Light: 100000 lux
Drop Specification:
  • 3Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.10 mm
Maximum Element Resolution (PDF417): 0.25 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 16kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge

Battery Information
Battery Capacity: 3250 mAh
Maximum Battery Recharge Time: 4 Hour
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Dual Colour
Product Color:
  • Black
  • White

Durability:
  • Water Resistant
  • Dust Resistant

Weight (Approximate): 235 g
Miscellaneous
Package Contents:
  • 1 x Gryphon 4500 GBT4500 Barcode Scanner
  • 1 x WLC4090-BK-BT-DRA base
  • 1 x USB Cable 90A052258

Ingress Protection (IP) Rating: IP52
Application/Usage:
  • Industrial
  • Retail
  • Healthcare
  • Transportation
  • Manufacturing
  • Commercial Service

Environmental Compliance:
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
