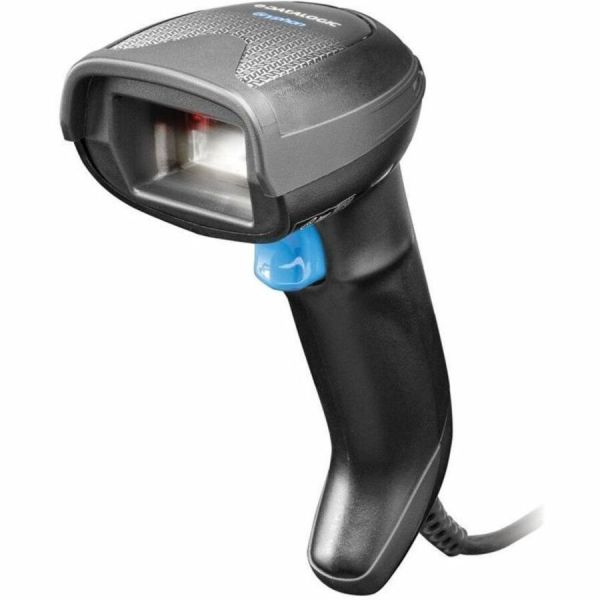

Datalogic Gryphon 4500 GD4520 Barcode Scanner Kit

Marketing Information

IMAGING TECHNOLOGY

The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

TOP TECHNOLOGIES FOR TODAY'S POS

Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with o...r without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences. Datalogic distinctive reading technology with highly visible whiteillumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

SIMPLE TO USE AND DEPLOY

The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

READY TO BE REGULARLY CLEANED AND DISINFECTED

Most of the working environments now have requirements that scanners need to be regularly cleaned and disinfected. The Gryphon 4500 series exploits Disinfectant-Ready enclosures, designed to withstand regular daily cleaning with harsh disinfectant solutions commonly used in a healthcare environment.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: GD4520BKK1DRA
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Gryphon
Product Series: 4500
Product Model: GD4520
Product Name: Gryphon 4500 GD4520 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 2D
• 1D

Barcode Symbology Supported:

• 1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
• 2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
• Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
• Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
• Digital Watermarking Digimarc Barcodes

Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Area
Features: Beep
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats:

• BMP
• JPEG
• TIFF

Maximum Ambient Light: 100000 lux
Drop Specification:

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 800
Illumination Color: White
Air Electrostatic Discharge (+/-): 16kV
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Black
Product Color: Black
Weight (Approximate): 161 g
Miscellaneous
Package Contents:

• Gryphon 4500 GD4520 Barcode Scanner Kit
• USB Cable

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Manufacturing
• Healthcare
• Laboratory
• Pharmacy
• Transportation
• Entertainment
• Commercial Service

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
