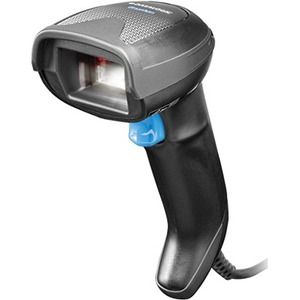

Datalogic Gryphon 4500 GD4590 Barcode Scanner

Marketing Information

IMAGING TECHNOLOGY:

The Gryphon 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out for the elegant and trendy design, the unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

TOP TECHNOLOGIES FOR TODAY'S POS:

Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or ...without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.

Datalogic distinctive reading technology with highly visible whiteillumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

SIMPLE TO USE AND DEPLOY:

The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.

For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: GD4590-BK-B-HD
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Gryphon
Product Series: 4500
Product Model: GD4590
Product Name: Gryphon 4500 GD4590 Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D CODES:

• Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D CODES:

• Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code

POSTAL CODES:

• Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

STACKED CODES:

• EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

DIGITAL WATERMARKING:

• Digimarc Barcodes

Light Source: Laser
Image Sensor Type: Imager
Scan Pattern:

• Area
• Omni-directional

Features:

• Beep
• 3GL
• Notification LED
• Ergonomic Design

Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 889 mm/s
Image Formats:

• BMP
• JPEG
• TIFF

Maximum Ambient Light: 100000 lux
Drop Specification:

• Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface

Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 16kV
Interfaces/Ports
Host Interface:

• Keyboard Wedge
• Multi-interface
• USB
• Serial

Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Durability:

• Water Resistant
• Dust Resistant

Weight (Approximate): 161 g
Miscellaneous
Package Contents:

• Gryphon 4500 GD4590 Barcode Scanner
• All in One Permanent Base

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Healthcare
• Transportation
• Entertainment
• Commercial Service
• Manufacturing
• Pharmacy

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
