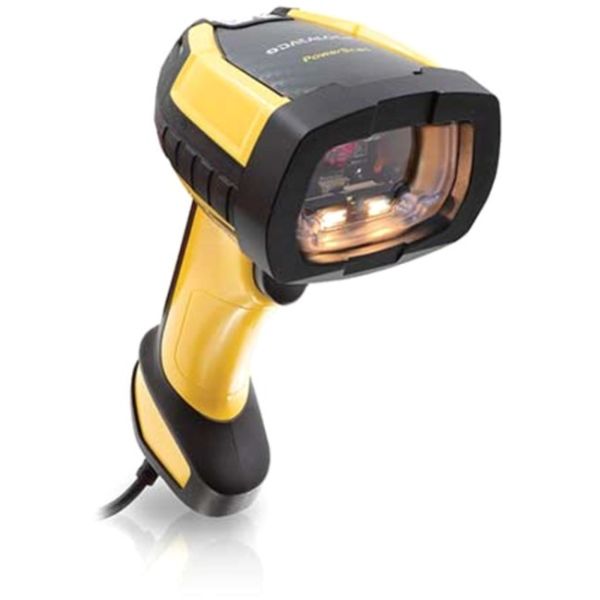

Datalogic PowerScan PD9630

Marketing Information
Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any... customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

THE BEST FEEDBACK TO THE OPERATOR

The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.

Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: PD9630-HP
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: PowerScan
Product Series: 9600
Product Model: PD9630
Product Name: PowerScan PD9630
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Codee
• Dot code

Postal Codes:

• Australian Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Portuguese Post
• Postnet
• Royal Mail Code (RM4SCC)
• Swedish Post

Digital Watermarking:

• Digimarc Barcodes (PD9630-HP and PD9630-DC)

Image Sensor Type: Imager
Scanner Range: Standard Range
Field of View (Horizontal): 38°
Field of View (Vertical): 24°
Reading Angle (Skew): 52°
Reading Angle (Pitch): 52°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification: Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F


Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 0.10 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.25 mm
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Height: 190.5 mm
Width: 78.7 mm
Length: 139.7 mm
Weight (Approximate): 318 g
Miscellaneous
Ingress Protection (IP) Rating:

• IP67
• IP65

Application/Usage:

• Manufacturing
• Asset Tracking
• Warehouse
• Logistics
• Picking
• Sorting
• Inventory

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
