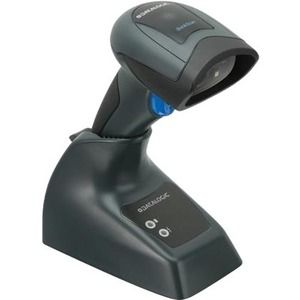

Datalogic QuickScan I QM2131 Handheld Barcode Scanner Kit

Marketing Information

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.

The QuickScan QM2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.

Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433... Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: QM2131-BK-433
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: QuickScan I
Product Model: QM2131
Product Name: QuickScan I QM2131 Handheld Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability: 1D
Barcode Symbology Supported: 1D / Linear Codes

• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• UPC A/E Composites

Image Sensor Type: Imager
Scan Rate: 400 scan/s
Network & Communication
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• Serial
• USB
• Keyboard Wedge

Physical Characteristics
Form Factor: Handheld
Product Color: Black
Height: 163 mm
Width: 41 mm
Depth: 91 mm
Weight (Approximate): 190 g
Miscellaneous
Package Contents:

• QuickScan I QM2131 Handheld Barcode Scanner
• Base Station/Charger

Additional Information:

USB Cable separate

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
