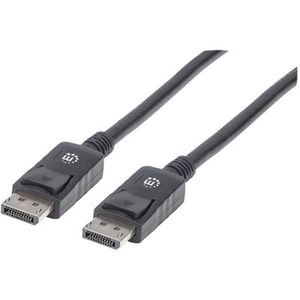

Manhattan DisplayPort Monitor Cable

Marketing Information

High-definition performance for personal computing

Manhattan DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 21.6 Gbps bandwidth (HBR2), DeepColor and 24-bit, 8-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 306935
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Model: 306935
Product Name: DisplayPort Monitor Cable
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 1 m
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating: Nickel
Contact Plating: Gold
Shielding: Yes
Device Supported:

• Audio/Video Device
• Desktop Computer
• Notebook
• Computer
• Blu-ray Player
• Gaming Console

American Wire Gauge: 28 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• EMI Protection
• Molded
• Booted
• Strain Relief
• Locking Latch

Physical Characteristics
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 77.1 g
Warranty
Limited Warranty: Lifetime
