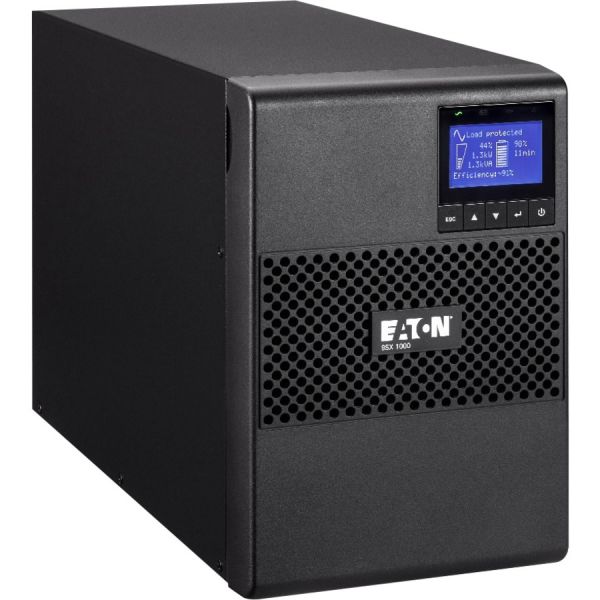

Eaton 9SX 1000VA Tower UPS

Marketing Information

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format

Graphical LCD

The new graphical LCD provides clear information on the UPS's status and measurements on a single screen (in seven languages). LCD display position can be adjusted to offer the best viewable angle for tower and rack usage.

Virtualisation-ready

With an optional network card and Eaton's Intelligent Power® Software Suite compatible with all major OS 9SX seamlessly integrates with leading virtualisation environments and cloud orchestrations too...ls.

Extended runtime

Eaton 9SX UPS allows you to increase the runtime by adding external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognised by the UPS.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9SX1000IBS
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9SX
Product Name: 9SX 1000VA Tower UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Phase: Single Phase
Application/Usage:

• Infrastructure
• Industrial
• Medical
• IT
• Network
• Storage
• Telecommunication

Power Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 900 W
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range:

• 120 V AC - 276 V AC
• 190 V AC - 276 V AC

Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 70 Hz
Waveform Type: Sine Wave
Controls/Indicators
Status Indicators:

Multilingual Graphical LCD Display

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): No
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 3
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Hot Swappable: Yes
Environmental Conditions
Sound Emission: 41 dB
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 377 mm
Width: 296 mm
Depth: 570 mm
Form Factor: Tower
Weight (Approximate): 15.20 kg
Miscellaneous
Package Contents:

• 9SX 1000VA Tower UPS
• 2 x IEC-IEC Output Cables
• USB Cable
• Serial Cable
• Safety Instructions
• Quickstart Guide
• BS Input Cord

Warranty
Limited Warranty: 2 Year
