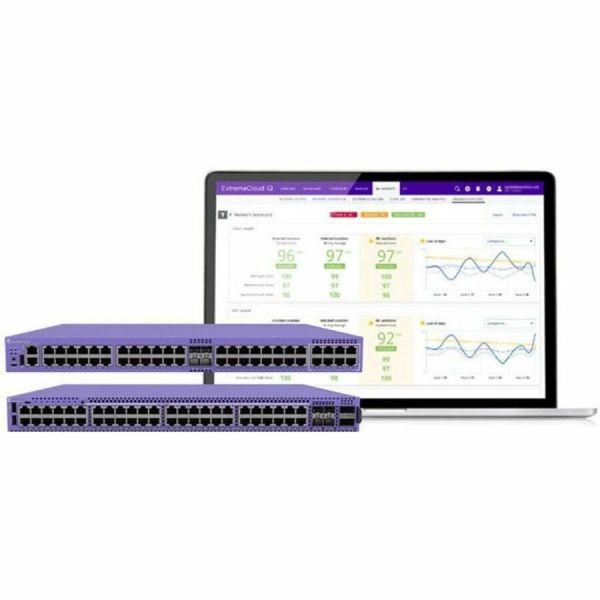

Extreme Networks 24-Port Multi-Gig Switch 4MW-20P-4X

Marketing Information

ExtremeCloud IQ Managed Switching for the Wired Edge

The 4000 Series are ExtremeCloud IQ managed* Layer 2 switches that simplify network operations while delivering all the power and flexibility of a traditional enterprise access switch. As a fully cloud-managed solution, the 4000 Series is ideal for enterprises looking for easy-to-manage, cost-effective Ethernet connectivity for their campus, branch or distributed sites.

4000 Series cloud management combines instant actions along with centralized visibility that simplify switch deployment, provisioning, and troubleshooting. Machine learning tools help quickly isolate issues, continuous cloud-delivery ensures latest management feature updates, and zero-touch provisionin...g allows rapid deployment across sites.

With 90W PoE, multi-gigabit access, stacking and policy services, the 4000 Series is a switch platform capable of addressing the evolving connectivity requirements of today's and tomorrow's wired edge.

The 4000 Series consists of 4120 and 4220 model families:

The 4120 family is comprised of a 24-port and a 48-port model, both with multigigabit (1/2.5Gb) and 90W PoE support across all access ports, and high-speed 4 x 10/25Gb uplink plus 2 x 100Gb uplink/stack ports, making it ideal as a wired concentrator for high-density Wi-Fi/IoT environments.

The 4220 family includes 8, 12, 24, and 48-port models with gigabit and multi-gigabit (1/2.5/5Gb) access ports, up to 90W PoE, and 4 x SFP+ uplink/stack ports and is a highly flexible enterprise Layer 2 wired edge solution

Specifications
Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: 42204MW20P4X
Manufacturer Website Address: http://www.extremenetworks.com
Brand Name: Extreme Networks
Product Series: 4000
Product Model: 4220-4MW-20P-4X
Product Name: 24-Port Multi-Gig Switch 4MW-20P-4X
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Stack Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 4 x 5 Gigabit Ethernet PoE
• 4 x 10 Gigabit Ethernet Expansion Slot
• 20 x Gigabit Ethernet PoE

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet
• 5 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 10/100/1000Base-T
• 5GBase-T

I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.1x
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1ab
• IEEE 802.3ad
• IEEE 802.3ab
• IEEE 802.3
• IEEE 802.3bz
• IEEE 802.3ae
• IEEE 802.3by
• IEEE 802.3ba
• IEEE 802.3bm
• IEEE 802.3az

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Power Source:

• Power Supply
• PoE
• AC

Redundant Power Supply Supported: Yes
Number of Power Supplies Installed: 1
Power Consumption: 458 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 43.2 mm
Width: 442 mm
Depth: 330.2 mm
Weight (Approximate): 4.81 kg
Miscellaneous
Package Contents:

• 24-Port Multi-Gig Switch 4MW-20P-4X
• Fans
• 1 x Fixed AC PSU
• Rack-Mount Kit

Application/Usage:

• Network
• Business
• Enterprise
• Campus
• IP Phone
• Wireless Access Point

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: Lifetime
