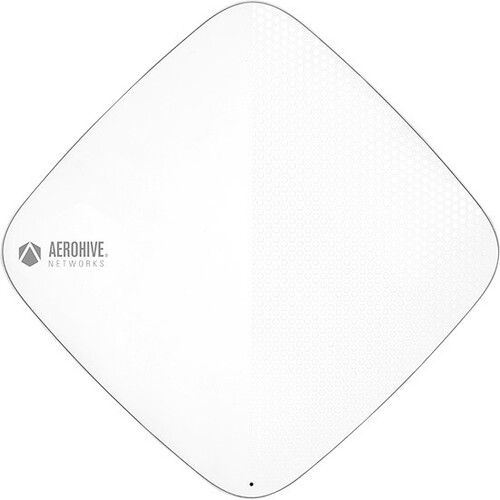

Extreme Networks ExtremeWireless AP510C Wireless Access Point

Marketing Information

Wi-Fi 6 certified (802.11ax) Indoor Access Point with integrated or external antenna options

Exteme's AP510C/CX is a high performance, enterprise class Wi-Fi 6 access point that is ideal for many verticals, including; retail, education, hospitality and healthcare. These enterprises need to support a high density of users and IoT devices, while delivering an exceptional user experience.

World SKU is the latest innovation from Extreme Networks to simplify the sales ordering process. The World SKU allows our customers, partners and distributors to order one model for any region instead the age-old problem of country specific SKU. ExtremeCloud IQ enables us to geo-locate an access point and accurately provide it the corres...ponding set of channel and power specifications that the product can operate under in that country. A single model AP510C/CX is orderable for anywhere in the world.

The AP510C/CX provides high-efficiency 802.11ax aggregate data rates up to 4.8 Gbps currently in both the 5 GHz band and 2.4 GHz band. It also supports a Software Selectable Radio (SSR), providing the flexibility to simultaneously operate both radios in the 5 GHz band.

Despite the exponential growth of users, BYOD devices, IoT, highbandwidth applications and security threats straining the infrastructure, the AP510 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.

Security

The AP510C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

Wi-Fi 6 Technology

The AP510C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

Programable Radios

Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP510C intelligent monitoring of the software configurable radios enables network administrators to configure network RF topology based on user environment and configure the access points in different modes as required.

Specifications
Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: AP510C-WW
Manufacturer Website Address: http://www.extremenetworks.com
Brand Name: Extreme Networks
Product Line: ExtremeWireless
Product Series: 500
Product Model: AP510C
Product Name: ExtremeWireless AP510C Wireless Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 4.2
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 4
Number of External Antennas: 4
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 4.80 Gbit/s
Data Encryption: Yes
Encryption Standard: WPA3
Interfaces/Ports
Ethernet Technology:

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
Management Port: Yes
Power Description
Power Consumption: 20.65 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Ceiling Mountable
• T-bar Mount

Antenna Form Factor: External
Height: 225 mm
Width: 225 mm
Depth: 37.5 mm
Weight (Approximate): 1.27 kg
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Restriction of Hazardous Substances (RoHS) 2
