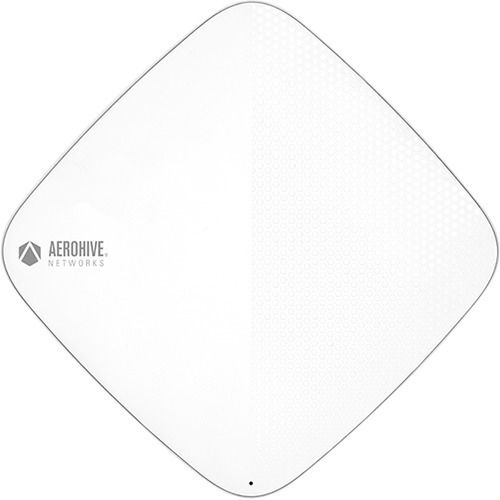

Extreme Networks ExtremeWireless AP510CX Wireless Access Point

Marketing Information
Wi-Fi 6 certified (802.11ax) Indoor Access Point with integrated or external antenna options

Exteme's AP510C/CX is a high performance, enterprise class Wi-Fi 6 access point that is ideal for many verticals, including; retail, education, hospitality and healthcare. These enterprises need to support a high density of users and IoT devices, while delivering an exceptional user experience.

The AP510C/CX provides high-efficiency 802.11ax aggregate data rates up to 4.8 Gbps currently in both the 5 GHz band and 2.4 GHz band. It also supports a Software Selectable Radio (SSR), providing the flexibility to simultaneously operate both radios in the 5 GHz band.

Despite the exponential growth of users, BYOD ...devices, IoT, highbandwidth applications and security threats straining the infrastructure, the AP510 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.

Security

The AP510C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

Wi-Fi 6 Technology

The AP510C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

Programable Radios

Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP510C intelligent monitoring of the software configurable radios enables network administrators to configure network RF topology based on user environment and configure the access points in different modes as required.

Management Analytics

In conjunction with ExtremeCLoud IQ, the AP510C/ CX provides a very rich set of data displayed via real-time analytics as well as a historial timeline.. The Network 360 and Client 360 views powered by machine learning provide context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles.

RF Monitoring

Network administrators will appreciate a powerful choice of RF management for their Wi-Fi networks, with Adaptive RF management with AI/ ML like functionality. Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired dual 5 GHz operation. Load balancing, band steering and many other attributes of the RF can all be automated.

Specifications
Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: AP510CX-WW
Manufacturer Website Address: http://www.extremenetworks.com
Brand Name: Extreme Networks
Product Line: ExtremeWireless
Product Model: AP510CX
Product Name: ExtremeWireless AP510CX Wireless Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 4.2
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Indoor/Outdoor: Indoor
Wireless Transmission Speed: 4.80 Gbit/s
Data Encryption: Yes
Encryption Standard: WPA3
Interfaces/Ports
Ethernet Technology:

• Gigabit Ethernet
• 2.5 Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
Management Port: Yes
Power Description
Power Consumption: 20.65 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Ceiling Mountable
• T-bar Mount

Antenna Form Factor: External
Height: 37.5 mm
Width: 225 mm
Depth: 225 mm
Weight (Approximate): 1.27 kg
