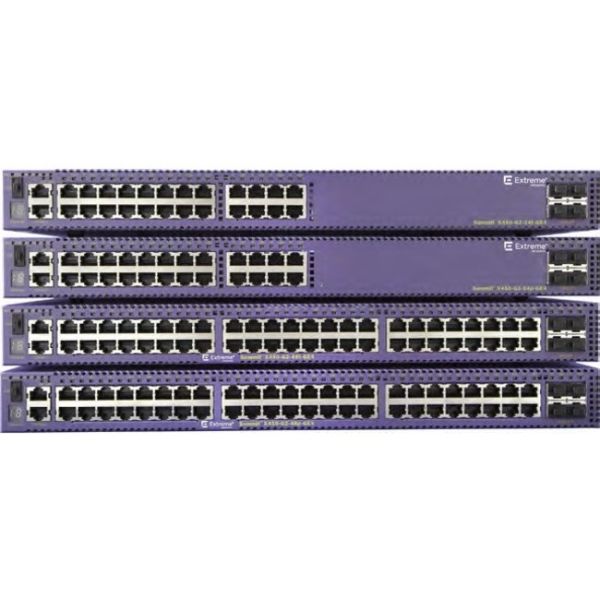

Extreme Networks Summit X450-G2-24p-10GE4 Ethernet Switch

Marketing Information
The Summit® X450-G2 series is based on Extreme Networks® revolutionary ExtremeXOS®, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, nonblocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network.

The Summit X450-G2 switches are effective campus edge switches with IEEE 802.3at PoE-plus. The Summit X450-G2 series is also an option for DSLAM or CMTS aggregation, or for active Ethernet access.

Comprehensive Security Management

• Role-based policy and host integrity enforcement, and identity ...management
• Universal Port Dynamic Security Profiles to provide fine granular security policies in the network
• Threat detection and response instrumentation to react to network intrusion with CLEAR-Flow Security Rules Engine
• Denial of Service (DoS) protection and IP security against man-in-the-middle and DoS attacks to harden the network infrastructure
• Role-based Policy enables support for policy profiles to secure and provision network resources based upon the role the user or device plays within the network.

Flexible Port Configuration

All models come equipped with either 4 ports of SFP+ 10 GbE or 4 ports of SFP 1GbE resident on the faceplate of each model.
Specifications
Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: 16177
Manufacturer Website Address: http://www.extremenetworks.com
Brand Name: Extreme Networks
Product Line: Summit
Product Series: X450-G2
Product Model: X450-G2-24p-10GE4
Product Name: Summit X450-G2-24p-10GE4 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot
• 2 x Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-TX
• 10GBase-X

I/O Expansions
Expansion Slot Type:

• SFP+
• QSFP

Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 43.9 mm
Width: 487.7 mm
Depth: 442 mm
Weight (Approximate): 6.32 kg
