Extreme Networks Virtual Services Platform VSP4900-24XE Ethernet Switch

Marketing Information
Virtual Services Platform 4900 Series

Enhance Your Network with an Extreme Fabric Connect Edge/Aggregation Device

The Virtual Services Platform (VSP) 4900 Series is the next generation of Extreme Fabric Connect fixed-form factor switches designed for network edge and aggregation deployments. Providing high-performance, resilient and secure Gigabit/multi-Gigabit Ethernet connectivity, the VSP 4900 enables end-to-end fabric services from network edge to aggregation to core, along with transparent extension of fabric services to the branch. Its advanced capabilities enable full-featured network virtualization to be flexibly deployed across a range of network environments.

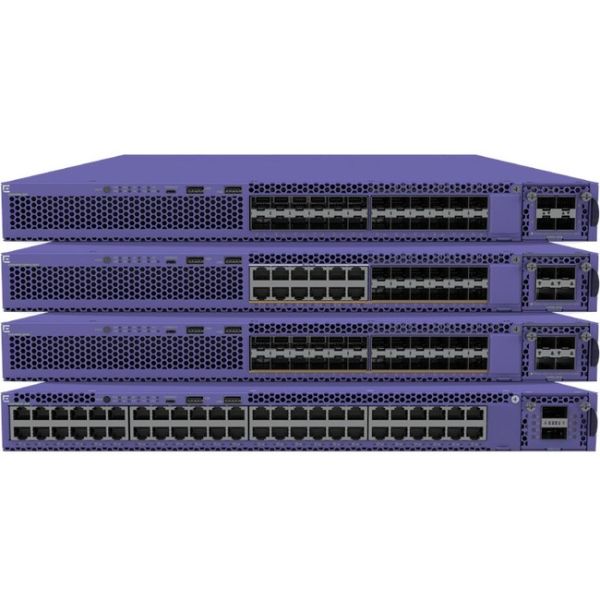

The VSP 4900 Series is available ...in four model variants to address a range of campus, remote site and/or multi-service needs.

• VSP4900-48P: 48 x 10/100/1000MbE with 30W PoE+ and MACsec- capable ports
• VSP4900-24S: 24 x 1G SFP ports
• VSP4900-24XE: 24 x 1/10GbE SFP+ MACsec (256-bit) capable ports
• VSP4900-12MXU-12XE: 12 x 100M/1G/2.5G/5G/10GbE ports with 60W PoE, plus 12 x 1/10GbE SFP+ MACsec (256-bit) capable ports

All models above also support modular uplinks - at 10Gb, 25Gb and 40Gb - for flexible linkage to other switches or devices over a range of media.

Extreme Fabric Connect

The VSP 4900 natively supports the Extreme Fabric Connect technology. Based on an extended implementation of the Shortest Path Bridging (SPB) standards of IEEE 802.1aq and IETF RFC 6329, Fabric Connect offers the ability to create a virtualized network that simplifies network provisioning and reduces the strain on network and IT personnel.

Fabric Connect features supported on the VSP 4900 Series include: L2 Virtual Service Networks (VSNs), Layer 3 Virtual Service Networks, Inter-VSN Routing, IPv4/ IPv6 IP Shortcuts, IP Multicast over Fabric Connect, Fabric Extend and Fabric Attach Server.

Fabric Extend

The VSP 4900 also natively supports Fabric Extend that enables it to extend Fabric Connect services over an intermediate 3rd-party network -- whether Layer 2 or Layer 3-based. With Fabric Extend, enterprises can, for example, connect two Fabric Connect environments (or islands) over a Service Provider WAN, such as MPLS or Ethernet WAN. Fabric Connect simplified provisioning and virtualization services can then be transparently extended across the 3rd-party network.

Advanced Layer 3 Services

The VSP 4900 Series also supports advanced Layer 3 services that enable it to satisfy conventional IP routing deployments, in addition to its fabric-based services. Layer 3 services include IPv4 and IPv6 dynamic routing, as well as IP multicast services.

Specifications
Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: VSP4900-24XE
Manufacturer Website Address: http://www.extremenetworks.com
Brand Name: Extreme Networks
Product Line: Virtual Services Platform
Product Series: 4900
Product Model: VSP4900-24XE
Product Name: Virtual Services Platform VSP4900-24XE Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X
I/O Expansions
Total Number of Expansion Slots: 25.0
Expansion Slot Type:

• SFP+
• Versatile Interface Module (VIM)

Number of SFP+ Slots: 24
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 80 W
Plug/Connector Type: IEC 320 EN 60320 C15
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 43.2 mm
Width: 440.4 mm
Depth: 488.4 mm
Weight (Approximate): 7.66 kg
