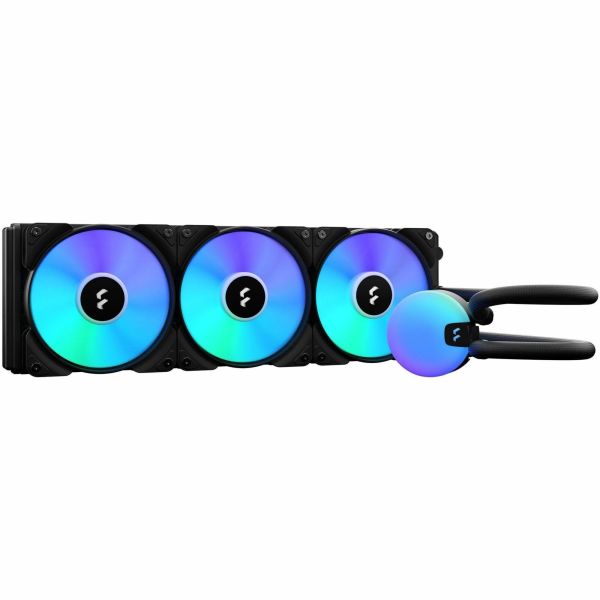

Fractal Design Lumen S36 RGB V2 Cooling Fan/Radiator/Water Block/Pump

Marketing Information

Color-coordinated cooling | The right way up

• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning

• Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller

Color-coordinate your cooling

Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Forget the thermal paste

• Thermal paste is pre-ap...plied to ensure a proper and pain-free installation
• Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators

• Compatible with LGA 1700 and AM5
• Supports the most common sockets for both Intel and AMD

Powerful aspects

Aspect fans for low turbulence and chaining support

Specifications
Manufacturer: Fractal Design
Manufacturer Part Number: FDWL1S3612
Manufacturer Website Address: http://www.fractal-design.com
Brand Name: Fractal Design
Product Line: Lumen S36 RGB V2
Product Name: Lumen S36 RGB V2 Cooling Fan/Radiator/Water Block/Pump
Product Type: Cooling Fan/Radiator/Water Block/Pump
Fan Information
Number of Fans: 3
Fan Bearing Type: Rifle Bearing
Fan Speed (Min): 500 rpm
Fan Speed (Max): 2000 rpm
Minimum Airflow: 22.09m³/h
Maximum Airflow: 95.14m³/h
Noise Levels (A-Weighted): 33.2 dB(A)
Fan Life: 10.3 Year
LED Color: ARGB
Maximum Air Pressure: 2.34mmH2O
Heatsink Information
Compatible Intel Socket:

• LGA-1700
• H3 LGA-1150
• H4 LGA-1151
• H2 LGA-1155
• H LGA-1156
• LGA-1200
• B LGA-1366
• LGA 2011-v3
• R LGA-2011
• R4 LGA-2066

Compatible AMD Socket:

• AM5
• AM4
• FM2
• FM2+
• FM1
• AM3 PGA-941
• AM3+
• AM2 PGA-940
• AM2+ PGA-940

Power Description
Rated Current: 370 mA
Physical Characteristics
Product Color:

• Black
• White

Radiator Material: Aluminium
Material Details:

• Cold plate material: Copper
• Tube material: Low-permeability rubber with braided nylon sleeve

Radiator Height: 392 mm
Radiator Width: 120 mm
Radiator Depth: 27 mm
Water Block Height: 43 mm
Miscellaneous
Compatibility:

Fractal Design Products:

• Torrent Case
• Meshify 2 Case
• Define 7 Case

Application/Usage:

• CPU
• Motherboard
• Processor
• Case
