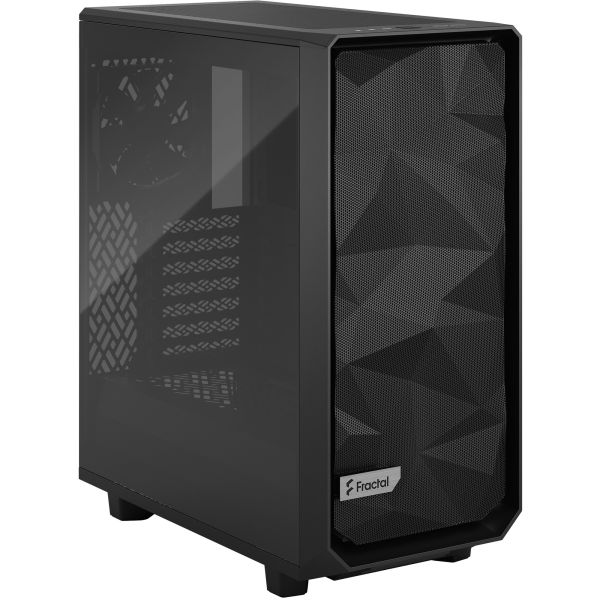

Fractal Design Meshify 2 Compact Black TG Light Tint

Marketing Information

Meshify 2 Compact Light Tempered Glass

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

A classic evolved

Removable front filter

• New fro...nt panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
• Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
• New front nylon filter that can be removed for increased airflow

Robust cooling

• Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
• Open interior layout creates a smooth airflow path from intake to exhaust
• Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured

• Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
• Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)
• Improved cable routing with three integrated cable alignment clips and six velcro straps

Filtered airflow

...creates a smooth airflow path

Top priority access

The fully removable top panel opens to provide excellent interior access

Spaciously compact

Clever layout enables the capacity of much larger cases

Type-C interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation

The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud

A full-length power supply shroud readily conceals the drive cage and excess cabling

Specifications
Manufacturer: Fractal Design
Manufacturer Part Number: FD-C-MES2C-03
Manufacturer Website Address: http://www.fractal-design.com
Brand Name: Fractal Design
Product Line: Meshify 2 Compact
Product Name: Meshify 2 Compact Black TG Light Tint
Product Type: Computer Case
Technical Information
Motherboard Supported:

• ATX
• Mini ATX
• Mini ITX

Number of Fans Supported: 7
Number of Fans Installed: 3
Installed Fan Size:

• 120 mm
• 140 mm

Bays
Number of External 5.25" Bays: 0
Number of Internal 5.25" Bays: 0
Number of Internal 2.5" Bays: 4
Number of Internal 2.5"/3.5" Bays: 2
Number of Total Expansion Bays: 6
I/O Expansions
Total Number of Expansion Slots: 7
Interfaces/Ports
Total Number of USB Ports: 3
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Power Description
Power Supply Installed: No
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 0
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Tempered Glass
• Steel
• Mesh

Form Factor: Mid-tower
Height: 475 mm
Width: 210 mm
Depth: 424 mm
Weight (Approximate): 8.10 kg
