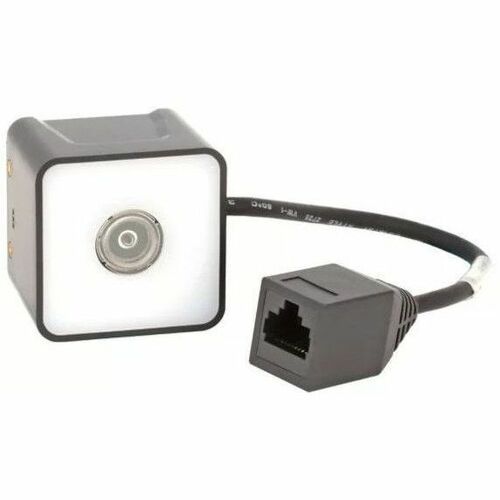

Honeywell HF520 Barcode Scanner kit

Marketing Information

The Honeywell HF520 new generation, compact module for fixed-mount applications with the latest Gen7 decoding core, provides a powerful scanning performance for all 1D, PDF, and 2D barcodes on mobile phone screens or on paper.

The HF520 provides a plug-and-play, integrated module solution for verifying barcodes, collecting payments, and billing customers. Designed with a wide viewing angle and shallow depth of field to help ensure optimized performance for reading screen barcodes in near field. The broad decoding capabilities include rapid decoding of all 1D and 2D barcodes with particularly powerful reading capability of highly- reflective mobile phone screens, reducing process time and helping to improve the user experience....

While preserving the same look and seamless interface of its predecessors, the HF520 offers three times faster motion tolerance, enabling greater flexibility and convenience for customers, making it a trusted fixed-mount scanning solution. Combined with the Gen7 decoder, the HF520 may be supported by menu commands and EZConfig which is compatible with mainstream Honeywell scan modules and engines.

The HF520 operates with white LED illumination to improve the reading performance of label barcodes in a low lighting environments. It is one of the very few 2D modules which has optimized performance for both screen barcodes and label barcodes, reducing customer cost and helping to improve the user experience.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: HF520R21USB
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Model: HF520
Product Name: HF520 Barcode Scanner kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

LINEAR:

• Codebar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/ EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation

2D STACKED:

• Codablock A, Codablock F, PDF417, MicroPDF417

2D MATRIX:

• Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code

POSTAL:

• Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

Light Source: LED
Image Sensor Type:

• Imager
• CMOS

Features: Vibration
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 55°
Motion Tolerance: 3900 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

• withstands two falls onto cement floor from height of 1,5 m [4.52 ft]

Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.25 mm
Maximum Element Resolution (Code 39): 0.51 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface:

• USB
• Serial

Power Description
Maximum Operating Power Consumption: 2.10 W
Standby Current: 140 mA
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Color Family: Black
Product Color: Black
Height: 32.5 mm
Width: 41.7 mm
Length: 41.7 mm
Weight (Approximate): 58 g
Miscellaneous
Package Contents:

• 1 x HF520 Scanner
• 1 x cable (RS232, straight, 1.5 m)

Ingress Protection (IP) Rating: IP40
Application/Usage: Commercial Service
Warranty
Limited Warranty: 15 Month
