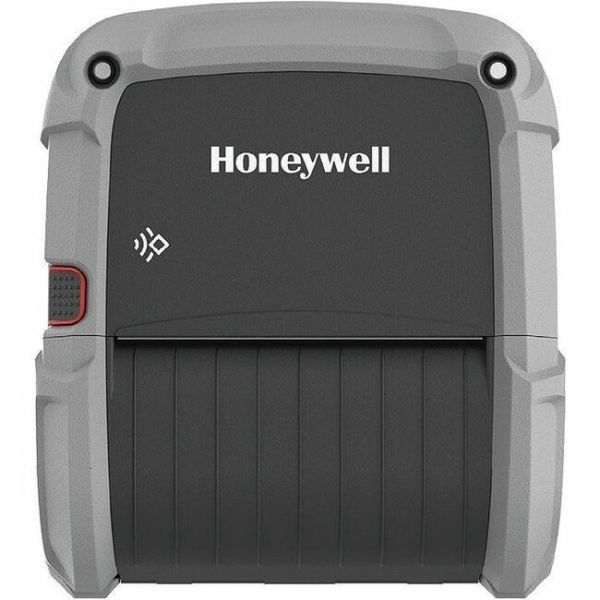

Honeywell RP4f Series Mobile Printer

Marketing Information

The RPf Series is a rugged and reliable direct thermal portable label printer that offers easy integrated device management, a high level of security throughout the entire printer lifespan, and upgrades that allow your printers to be updated with enhanced features in direct store delivery, field service, T&L, retail, and airline environments.

This portable printer provides big productivity gains and reduces errors by enabling workers to print labels at the location they need, so labels can be applied when and where they need to be applied. The RPf printer comes with powerful CPU and smart power management - allowing smooth, continuous operation so your workers can work efficiently with less media reloading, battery swaps, and dow...ntime. The RPf Series printer prints 25.4mm (1 in) to 104.1 mm (4.1 in) labels/receipts and can accommodate a wide variety of media, including the heavy stock necessary for hang tags and specialty label needs. Plus, its fast and easy-loading design means fewer interruptions and increased productivity in your application, whether using one type of media or several. The RPf Series has the latest 802.11 a/b/g/n/ac WiFi capabilities for the best range and fast data communications on your WLAN. It also includes a Bluetooth 5.0 LE radio at no additional charge for when workers are outside of WLAN range or using the printer with a Bluetooth mobile computer.

Built on Honeywell's software platform, the RPf printer offers IT managers easy integrated device management, a high level of security throughout the entire printer lifespan, and upgrades that allow your printers to be updated with enhanced features.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: RP4F0000D22
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Series: RPF
Product Model: RP4f
Product Name: RP4f Series Mobile Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 127 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 104 mm (4.09")
Barcode Symbology Supported:

• 1D
• 2D

Application/Usage:

• Mobile
• Retail
• Healthcare
• Transportation & Logistic

Features:

• Rugged
• Dust Resistant
• Ergonomic
• Lightweight
• Drop Resistant

Ingress Protection (IP) Rating: IP54
Power Consumption: 4.90 A
Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Interfaces/Ports
USB: Yes
Network & Communication
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.2 cm (4")
Media Types & Handling
Media Type:

• Label
• Receipt
• Tag
• Linered Media
• Black Mark
• Gap
• Linerless

Media Thickness: 160 µm
Maximum Roll Diameter: 58 mm
Maximum Label Width: 111 mm
Fonts & Emulation
Language Emulation:

• DPL
• ZPL II
• XML
• IPL
• CPCL
• Fingerprint
• Direct Protocol (DP)

Power Description
Power Source: Battery
Battery Information
Battery Included: Yes
Battery Capacity: 4900 mAh
Environmental Conditions
Operating Temperature: 20°C - 55°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: 30°C - 65°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Form Factor: Portable
Height: 187 mm
Width: 164 mm
Depth: 77 mm
Weight (Approximate): 1.02 kg
Miscellaneous
Platform Supported:

• PC
• Android
• iOS
