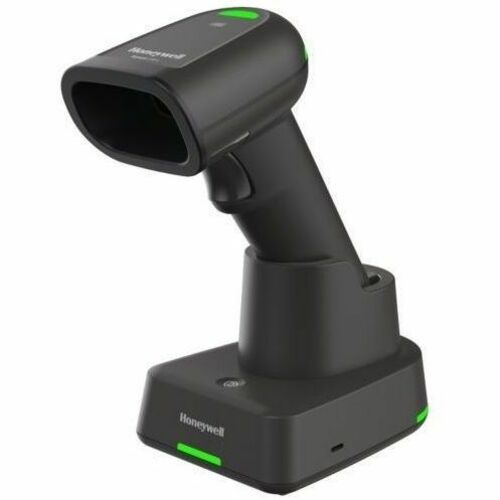

Honeywell XENON ULTRA 1962G Cordless Bluetooth Handheld Scanner

Marketing Information

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra delivers enhanced scan performance and premium features for retailers.

The Xenon Ultra 1962g incorporates Honeywell's next generation of scanning capability - allowing retailers to stay productive and keep customer service as their top priority.

Freedom of movement around POS terminals, conveyors, and customers is a continued challenge for today's retail associates. As more technology is packed into the streamlined modern-day POS station, free space is at a premium. The Xenon Ultra cordless scanner can help ensure that your associates' attention is kept on maximizing customer experience by eliminating wasted time managing cables and having more space fo...r completing transactions.

One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1962GHD2USB5R
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Xenon Ultra
Product Model: 1962G
Product Name: XENON ULTRA 1962G Cordless Bluetooth Handheld Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

• Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies

Light Source: LED
Image Sensor Type: Imager
Depth of Field:

• 34 mm - 174 mm (1.34 in - 6.85 in) @ 3 mil Code 39
• 23 mm - 311 mm (0.91 in - 12.24 in) @ 5 mil Code 39
• 0 mm - 651 mm (0 in - 25.63 in) @ 10 mil Code 39
• 0 mm - 654 mm (0 in - 25.75 in) @ 13 mil UPC
• 6 mm - 367 mm (0.24 in - 14.45 in) @ 7.5 mil Code 128
• 0 mm - 728 mm (0 in - 28.66 in) @ 15 mil Code 128
• 4 mm - 1115 mm (0.16 in - 43.9 in) @ 20 mil Code 39
• 45 mm - 176 mm (1.77 in - 6.93 in) @ 5 mil PDF417
• 22 mm - 229 mm (0.87 in - 9.02 in) @ 6.7 mil PDF417
• 34 mm - 188 mm (1.34 in - 7.4 in) @ 7.5 mil DM
• 12 mm - 273 mm (0.47 in - 10.75 in) @ 10 mil DM
• 11 mm - 262 mm (0.43 in - 10.32 in) @ 10 mil QR
• 0 mm - 495 mm (0 in - 19.49 in) @ 20 mil QR

Scan Pattern: Area
Scanner Range: High Density
Scanning Distance: 727.96 mm
Features:

• Beep
• Notification LED

Cable Type Included: USB
Field of View (Horizontal): 42°
Field of View (Vertical): 36°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 4000 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

• Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.19 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.13 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 1080
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• USB
• Serial
• Keyboard Wedge

Power Description
Maximum Operating Power Consumption: 2.50 W
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3300 mAh
Maximum Battery Run Time: 22 Hour
Maximum Battery Recharge Time: 4.50 Hour
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Durability:

• Water Proof
• Dust Proof

Height: 160.2 mm
Width: 70.4 mm
Length: 108.2 mm
Weight (Approximate): 247 g
Miscellaneous
Package Contents:

• 1 x XENON ULTRA 1962G Cordless Bluetooth Handheld Scanner
• 1 x USB Type A 2.7M straight cable (3012-6337-001)
• 1 x Presentation Charge and Communication base (CCB-U00-G & 1962G-BAT-CUP)

Ingress Protection (IP) Rating:

• IP52
• IP41

Application/Usage:

• Retail
• Self-checkout
• Component Tracking
• Assembly Line
• Inventory

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

• Supercapacitor: 5 year factory warranty
• Lithium-ion Battery Pack: 1 year
