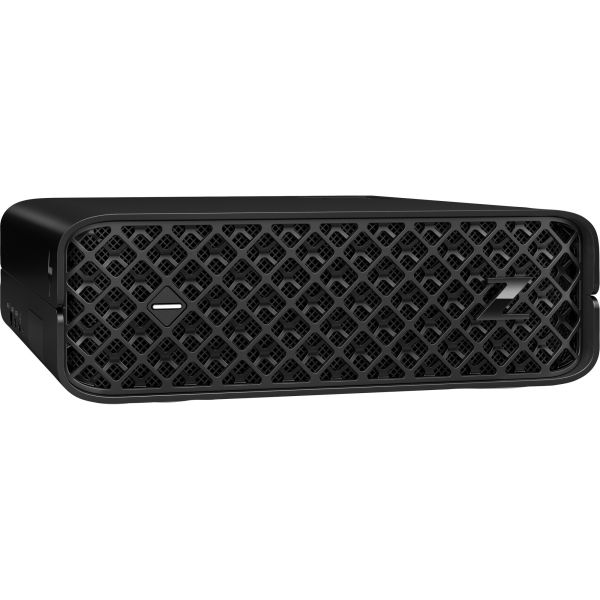

HP Z2 Mini G9 Workstation

Marketing Information

Overview | Powers large workflows. Fits a tiny space.

Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.

Unprecedented Z mini power

Get a standard low-profile NVIDIA® GPU and an Intel© CPU for seamless design, rendering and simulation.

Engineered to Evolve with your worflow

The new slide-out design gives tool-free interior access so you can easily swap graphics, memory, and more.

Fits anywhere

Create y...our ideal workspace in an office or at home. Mount the Z2 mini behind your monitor or under your desk.

Industry leading security. Reliability you can trust

Get peace of mind with a PC that's built to endure. The Z2 Mini undergoes 360K hours of rigorous testing, military-standard testing and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in and above the OS.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Core™ i7 processor

Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides precongured enterprise-level PC protection for small and medium sized businesses.

Multi-Display Support

See all your windows in perfect detail with support for up to 8 displays at 4K resolution.

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Network Connectivity

Connect and collaborate quickly with 10Gb Ethernet interface.

Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: 996N7ET#ABU
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Series: Z2 Mini G9
Product Name: Z2 Mini G9 Workstation
Product Type: Workstation
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Core i7
Processor Generation: 14th Gen
Processor Model: i7-14700K
Processor Core: Icosa-core (20 Core)
Processor Speed: 3.40 GHz
L3 Cache: 33 MB
vPro Technology: Yes
Processor Socket: Socket LGA-1700
Processor Threads: 28
Chipset
Chipset Manufacturer: Intel
Chipset Model: W680
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 64 GB
Memory Technology: DDR5 SDRAM
Error Checking: Non-ECC
Memory Clock Speed: 5.60 GHz
Memory Configuration: 1 x 16GB
Storage
Drive Type: SSD
Total Solid State Drive Capacity: 512 GB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
Controllers
Controller Type: NVMe
RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Model: Quadro T400
Graphics Memory Capacity: 4 GB
Graphics Memory Accessibility: Dedicated
Maximum Memory Bandwidth: 80 GB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
USB Type-C: Yes
USB Type-C Detail: 2 SuperSpeed USB Type-C 20Gbps signaling rate
DisplayPort: Yes
Mini DisplayPort: Yes
Number of Mini DisplayPort: 3
Number Of Ethernet Ports: 1
Number of DisplayPort Outputs: 2
Operating System
Operating System Platform: Windows
Operating System: Windows 11 Pro
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Power Supply Wattage: 280 W
Number of Power Supplies Installed: 1
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
Form Factor: Mini PC
Height: 69 mm
Width: 211 mm
Depth: 218 mm
Weight (Approximate): 2.40 kg
Miscellaneous
Package Contents:

• Z2 Mini G9 Workstation
• Keyboard
• Mouse
• Power Adapter

Energy Star: Yes
TCO Certified: Yes
Energy Efficiency Certification: China Energy Conservation Program (CECP)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

• 3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair.
• Support service included HP 1 Year Wolf Pro Security Edition Service.
