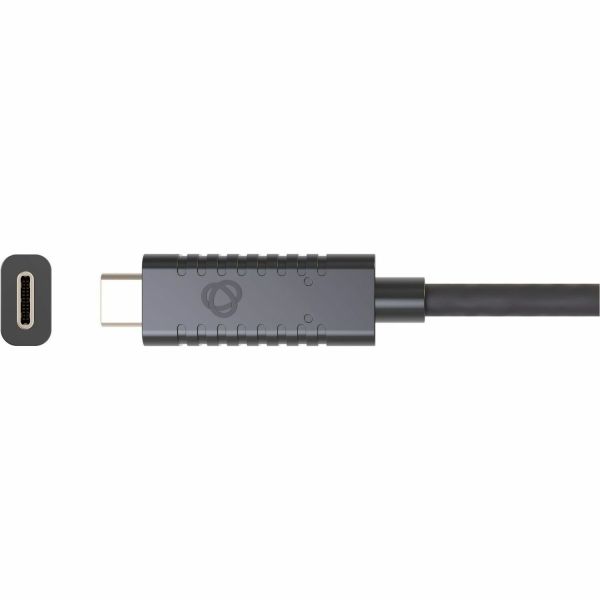

Kramer USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable

Marketing Information

CLS-AOCU32/FF is a USB-C(M) to USB-C(M), USB 3.2 Gen-2 SuperSpeed+ Active AOC Hybrid cable offering a whole new level of reliable connectivity thanks to kramer's unique K-lock. Transfers Video 4K@60, data at incredible speeds (10G) in parallel to USB 2.0, supports 60W charging power - all with just one Active AOC Hybrid cable.

CLS-AOCU32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type-C connector, with the integrated K-Lock mechanism, can be plugged in any orientation, thus eliminating the frustration of getting the port insertion just right.

• 4K@60 Video
• Reversible USB Type-C Connector - With integrated locking mechanism.
• Transfer Ra...tes - Up to 10Gbps.
• Current Rating - 3A
• Compatibility - PC, Mac & Mobile.
• Plug and Play - For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
• USB Backward Compatibility - 1.0, 1.1, 2.0, and 3.0.
• RoHS REACH Compliant

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: CLSAOCU32FF35
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: CLS-AOCU32/FF-35
Product Name: USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active AOC Cable
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB-C
Cable Length: 10.67 m
Connector Type on First End: USB 3.2 (Gen 2) Type C - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x Usb 3.2 (gen 2) type c - male
Connector Type on Second End: USB 3.2 (Gen 2) Type C - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x Usb 3.2 (gen 2) type c - male
Connector Plating: Nickel
Jacket Type: LSHF
Device Supported:

• PC
• MAC
• Mobile Device
• Monitor
• Webcam
• Printer
• Scanner
• Keyboard

American Wire Gauge: 28 AWG
Data Transfer Rate: 10 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• AOC Technology
• Active
• K-Lock
• Charging
• Reversible
• Plug & Play
• Bendable

Physical Characteristics
Jacket Color: Black
Product Material: Gold
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

Gold - Connector Pin
