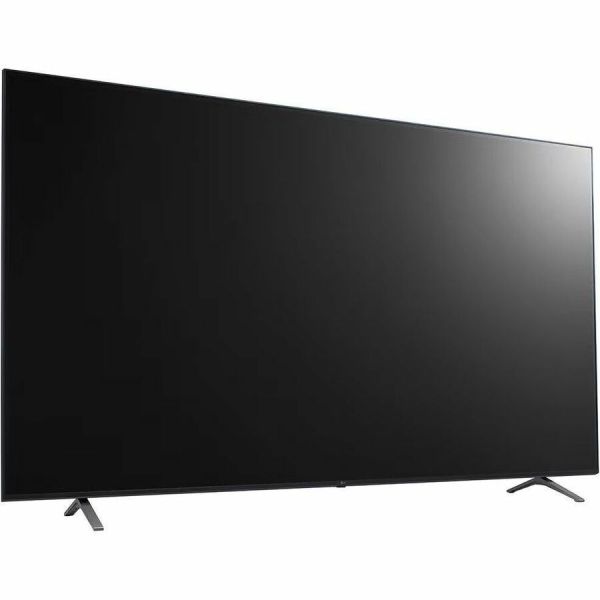

LG 86UN640S Smart LED-LCD TV

Marketing Information

LG TV Signage with Essential Function | Superb Picture Quality with Ultra HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

Improved Design with Slim Depth

This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.

High-Performance with LG webOS22

LG webOS22, with an upgraded SoC and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive G...UI.

Embedded Content & Group Management

The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

Versatile Content Management with LG SuperSign CMS

LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.

Easy Group Control

The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

Compatible with AV Control Systems

The UN640S series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

Compatible with Video Conference System

For effective visual meeting, the UN640S series supports its compatibility with Cisco solutions that offers powerful and integrated control** for a smarter video conference.

Display Power Management Support

Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.

Real-time Promotion & Content Sharing

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time. And Content Mirroring among devices is available on a same Wi-Fi network.

Wireless Access Point

UN640S series operates as a virtual router which can be an wireless access point for mobile devices.

Easy Menu Setup for Vertical Needs

UN640S series increases users' convenience by organizing frequently used menus* by industry.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Specifications
Manufacturer: LG Electronics
Manufacturer Part Number: 86UN640S
Manufacturer Website Address: http://www.lge.co.uk
Brand Name: LG
Product Series: UN640S
Product Model: 86UN640S
Product Name: 86UN640S Smart LED-LCD TV
Product Type: Smart LED-LCD TV
Technical Information
Screen Size Class: 2184.40 mm
Viewable Screen Size: 218.4 cm
Backlight Technology: LED
Operating System: WebOS 22
Features:

• Connect Share
• Time Scheduler
• Content Management Solution
• High Dynamic Range (HDR)
• Sound Sync
• Web Browser
• SoftAP
• Screen Share
• Google DIAL
• Discovery and Launch (DIAL)
• USB Cloning
• Wake on LAN (WOL)
• Hotel Mode
• One Channel Map
• Welcome Screen
• Lock Mode
• Remote Diagnostic
• Energy Saving Mode
• Audio Return Channel (ARC)
• Multi IR

PC Streaming: Yes
Internet Access: Yes
Video
Digital Tuner:

• DVB-C
• DVB-S2
• DVB-T2

Video Signal Standard: 4K UHDTV
Maximum Resolution: 3840 x 2160
Scan Format: 2160p
High Dynamic Range (HDR) Type:

• HDR10 Pro
• HLG

Audio
RMS Output Power: 20 W
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Interfaces/Ports
HDMI: Yes
Total Number of HDMI Ports: 6
USB: Yes
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Frequency:

• 50 Hz
• 60 Hz

Energy & Performance
Energy Efficiency Class (SDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 160 W
Energy Efficiency Class (HDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (HDR) (from 1st March 2021): 232 W
Physical Characteristics
Product Color: Ashed Blue
VESA Mount Compatible: Yes
VESA Mount Standard: 600 x 400
Height: 110.4 cm
Width: 192.7 cm
Depth: 6 cm
Height with Stand: 116.7 cm
Width with Stand: 192.7 cm
Depth with Stand: 36.2 cm
Weight (Approximate): 45.20 kg
Weight with Stand (Approximate): 45.90 kg
Miscellaneous
Package Contents:

• 86UN640S Smart LED-LCD TV
• S-con Remote
• Power Cable (2 m)
