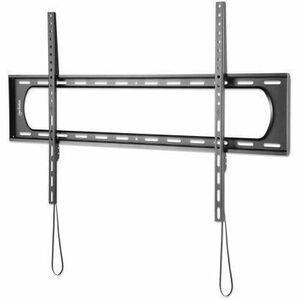

Manhattan Heavy-Duty Low-Profile Large-Screen Fixed TV Wall Mount

Marketing Information

Slim Ultra Heavy-Duty XXL TV Mounting Bracket - strong mount for flush-as-possible big-screen TV installations

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This ultra-slim TV bracket extends only 35 mm (1.4 in.) from the wall. It's constructed of high-quality, powder-coated steel to fit flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wal...l, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 461917
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Model: 461917
Product Name: Heavy-Duty Low-Profile Large-Screen Fixed TV Wall Mount
Packaged Quantity: 1 Pair
Package Type: Retail
Product Type: Mounting Bracket
Product Information
Device Supported:

• TV
• LED TV
• OLED TV
• Plasma TV
• Digital Signage Display
• Flat Panel Display
• Curved Screen Display

Number of Displays Supported: 1
Maximum Load Capacity: 120 kg
Minimum Screen Size Supported: 152.4 cm
Maximum Screen Size Supported: 304.8 cm (120")
Features:

• Heavy Duty
• Flat
• Durable
• Bubble Level
• Spring Lock

Orientation: Landscape
Mount Profile: Low Profile/Fixed
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern:

• 50 x 50
• 75 x 75
• 100 x 100
• 100 x 150
• 150 x 100
• 100 x 200
• 200 x 100
• 150 x 150
• 200 x 200
• 200 x 300
• 300 x 200
• 200 x 400
• 400 x 200
• 300 x 300
• 300 x 400
• 400 x 300
• 600 x 200
• 400 x 400
• 600 x 300
• 400 x 600
• 600 x 400
• 700 x 400
• 800 x 400
• 600 x 600
• 800 x 500
• 800 x 600
• 900 x 600

Product Material: Steel
Form Factor: Wall Mountable
Width: 100.5 cm
Depth: 3.5 cm
Length: 62.5 cm
Weight (Approximate): 3.16 kg
Miscellaneous
Package Contents:

• Heavy-Duty Low-Profile Large-Screen Fixed TV Wall Mount
• Attachable Bubble Level
• Installation Hardware with Instructions

Application/Usage:

• Residential
• Office
• Hospitality
• Classroom
• Conference Room
• Commercial
• Home
• Wall

Warranty
Limited Warranty: Lifetime
