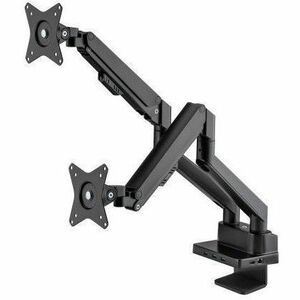

Manhattan Aluminum Gas Spring Dual Monitor Desk Mount with 8-in-1 Docking Station

Marketing Information

Ergonomic monitor desk mount with USB, HDMI, Ethernet and Power Delivery Ports

Turn your (home-) office dream desk into an ergonomic reality and reclaim valuable workspace with this combined monitor mount and docking station from Manhattan. Since it uses a gas spring to hold your displays, these monitor arms only need a light touch to move your screens to the best viewing angle for you. The dual-monitor VESA mount supports 17" to 32" displays with a weight capacity up to 9 kg (19.8 lbs.) each. An attractive black finish with powder coating complements your workspace.

Light-touch height adjustment

A gas-spring cylinder makes it easy to raise or lower the display anywhere from 210 to 490 mm (8.3 to 19.3 in.) so it can sit i...n the best place for your line of sight. Adjust the tension according to the weight of your monitors to reposition them effortlessly.

Full-motion view optimization

The full-motion arms let you extend, tilt and swivel across multiple axes, so it's easy to create an ergonomic workspace that fits your exact needs. You can also rotate your monitors from landscape to portrait orientation to view photos in portrait mode or see longer pages and blocks of code without having to scroll down.

Easy desk side or grommet installation

You can either clamp the mount to the side of a desk, table or counter that is 10 to 50 mm (0.4 to 2 in.) thick, or you can mount it through a grommet hole that is 10 to 50 mm (0.4 to 2 in.) wide. All the hardware you need is included in the box.

Clean cable management

Built-in cable management keeps the cords on your desk tidy and organized.

Two 4K UHD HDMI ports for display connectivity

The two included HDMI ports on the docking station base let you multitask on two HDMI monitors at the same time. Add one HDMI monitor to your laptop display for 4K@60Hz images, or add two monitors with resolutions up to 4K@30Hz.

Peripheral and wired network connections

The three USB-A ports (5 Gbps transfer speeds) let you connect mice, keyboards or flash drives. A Gigabit RJ45 port provides 10/100/1000 Mbps connectivity to the wired network, an extremely useful connection that's missing in most modern Ultrabooks™ and MacBooks®.

Up to 100 W charging power with USB-C Power Delivery (PD)

The included USB-C PD port lets you charge your notebook with power output up to 87 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 461887
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: Aluminum Gas Spring Dual Monitor Desk Mount with 8-in-1 Docking Station
Package Type: Retail
Product Type: Desk Mount
Product Information
Device Supported:

• Monitor
• Flat Panel Display
• Curved Screen Display
• TV
• Docking Station
• Hub
• Peripheral Device

Number of Displays Supported: 2
Minimum Load Capacity: 9 kg
Maximum Load Capacity: 18 kg
Minimum Screen Size Supported: 43.2 cm
Maximum Screen Size Supported: 81.3 cm (32")
Features:

• Gas Spring
• Extendable Arm
• Tilt
• Swivel
• Rotate
• Cable Management
• Grommet
• Articulating Arm
• Full Motion
• Easy to Install
• Ergonomic

Orientation: Landscape/Portrait
Height Adjustment Type: Gas Spring
Minimum Extended Height: 210.82 mm
Height Adjustable: Yes
Maximum Mount Hole Diameter: 50.80 mm
Minimum Tilt Angle: -45°
Maximum Tilt Angle: 45°
Maximum Swivel Angle: 180°
Maximum Rotate Angle: 360°
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Powder Coated Beige
VESA Mount Compatible: Yes
Mounting Pattern:

• 100 x 100
• 75 x 75

Product Material: Aluminium
Form Factor: Desk
Height: 56 cm
Width: 11.5 cm
Length: 101.8 cm
Weight (Approximate): 4.55 kg
Miscellaneous
Package Contents:

• Aluminum Gas Spring Dual Monitor Desk Mount with 8-in-1 Docking Station
• Installation hardware with instructions
• Connection cable, USB-C male to USB-C male, 1 m (3 ft.)

Application/Usage:

• Home
• Office
• Studio
• Security
• IT Network
• Workspace
• Laptop

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
