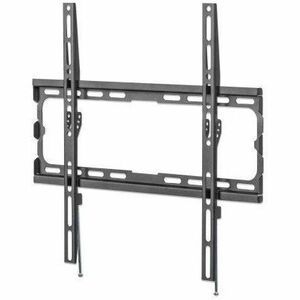

Manhattan Low-Profile Fixed TV Wall Mount

Marketing Information

Ultra Slim TV Wall Bracket - strong mount for flush-as-possible TV installations

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances thin, modern TV silhouettes. This ultra-slim TV bracket extends only 20 mm (0.8 in.) from the wall. Constructed of high-quality, powder-coated steel, this TV mounting bracket fits flat LCD, OLED or plasma TVs up to 70" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation that lets you easily and securely put the TV in place. It's ideal for residential, office, hospital...ity, classroom, conference room, digital signage and other commercial applications.

• Supports one flat 32" to 70" TV up to 45 kg (100 lbs.)
• Holds TV only 20 mm (0.8 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
• Heavy-duty steel construction with powder coating
• Low-profile, fixed installation; ideal for home, office and commercial applications
• Meets VESA standards from 75x75 to 400x400 (e.g., 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400)
• Lifetime warranty

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 462396
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: Low-Profile Fixed TV Wall Mount
Package Type: Retail
Product Type: Mounting Bracket
Product Information
Device Supported:

• Flat Panel Display
• Curved Screen Display
• LCD Display
• TV
• OLED TV
• Plasma TV
• Digital Signage Display

Number of Displays Supported: 1
Maximum Load Capacity: 45 kg
Minimum Screen Size Supported: 81.3 cm
Maximum Screen Size Supported: 177.8 cm (70")
Features: Heavy Duty
Mount Profile: Low Profile/Fixed
Mount Function: Wall Mount
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100
• 100 x 150
• 100 x 200
• 150 x 100
• 200 x 100
• 200 x 200
• 200 x 300
• 200 x 400
• 300 x 200
• 300 x 300
• 300 x 400
• 400 x 200
• 400 x 300
• 400 x 400

Product Material: Steel
Form Factor: Wall Mountable
Height: 2 cm
Width: 44 cm
Length: 41.8 cm
Weight (Approximate): 800 g
Miscellaneous
Package Contents:

• Low-Profile Fixed TV Wall Mount
• Installation hardware with instructions

Application/Usage:

• Residential
• Hospitality
• Classroom
• Conference Room
• Commercial

Warranty
Limited Warranty: Lifetime
