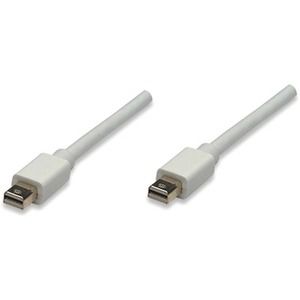

Manhattan Mini DisplayPort Monitor Cable

Marketing Information

High-definition performance for personal computing

Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 324557
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Model: 324557
Product Name: Mini DisplayPort Monitor Cable
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 1 m
Connector Type on First End: Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating: Gold
Contact Plating: Gold
Conductor: Copper
Shielding: Yes
Device Supported:

• Audio/Video Device
• Monitor
• Notebook
• Blu-ray Player
• Gaming Console
• Desktop Computer

American Wire Gauge: 32 AWG
Data Transfer Rate: 14.8 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• Molded
• Booted
• Strain Relief
• HDCP
• DPCP
• EMI Protection

Physical Characteristics
Product Color: White
Jacket Material: Polyvinyl Chloride (PVC)
Warranty
Limited Warranty: Lifetime
