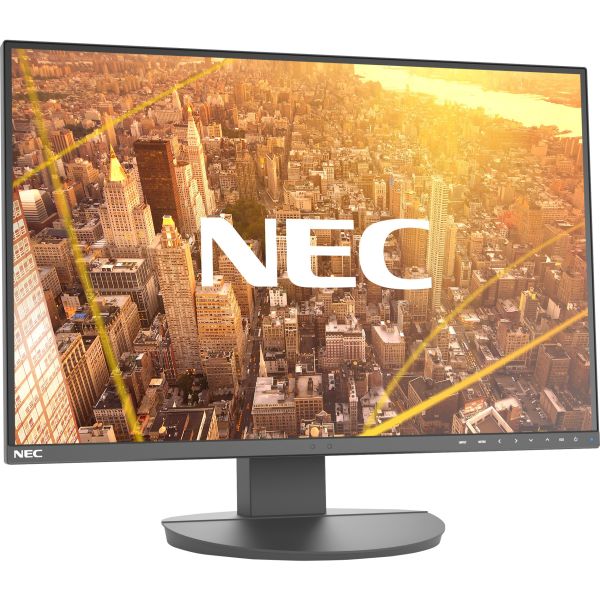

NEC Display MultiSync EA242WU LCD 24" Enterprise Display

Marketing Information

Primed for Office Productivity

Optimised for multi-display set ups, the ultra-narrow bezel NEC MultiSync® EA242WU is designed to support maximum productivity in today's hybrid workspaces. Daisy-chaining neighbouring displays, embedded LAN and USB-C connectivity all contribute to minimal cabling and maximum flexibility - the display becomes the hub of workspace communications!

Create individually tailored workspaces with best ergonomic adjustability and user-centred features including built-in low blue light and flicker-free technologies to protect the health of the viewers' eyes and guard against fatigue, without compromising the high-performance IPS screen technology.

Fulfilling the demand for future-ready ...performance and delivering all the trusted quality and reliability of the Sharp/NEC brand, the EA242WU is purpose-designed to maximise office productivity.

Benefits

• Improve your Productivity - with embedded LAN and USB-C, this display serves as a docking hub in your Personal Workspace.
• Future-proof flexibility - wide connectivity provides high-level flexibility with LAN, DP, HDMI, USB Type C, USB A and audio output.
• Clutter-free workspace - Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable
• Easy multi-screen set-up - Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed
• Maximum attention to health and well-being - the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.

Specifications
Manufacturer: Sharp
Manufacturer Part Number: 60004855
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: NEC Display
Product Line: MultiSync
Product Model: EA242WU
Product Name: MultiSync EA242WU LCD 24" Enterprise Display
Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 61 cm (24")
Screen Mode: WUXGA
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 6 ms
Aspect Ratio: 16:10
Pixel Pitch: 0.27000 mm x 0.27000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: WLED
Features:

• Flicker-free
• Low Blue Light
• Eco Mode
• On-screen Display (OSD)
• sRGB
• Plug & Play
• Cable Lock Slot
• Cable Management

Horizontal Frequency: 31.50 kHz to 77 kHz
Stand Adjustments:

• Height
• Swivel
• Tilt

Video
Maximum Resolution: 1920 x 1200
Standard Refresh Rate: 60 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 5,000:1
Brightness: 300 cd/m²
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of USB Ports: 4
Number of USB 3.1 Upstream Ports: 1
Number of USB 3.1 Downstream Ports: 2
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Energy Efficiency Class (SDR) (from 1st March 2021): D
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 13 kW
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Black
Height with Stand: 365 mm
Width with Stand: 531 mm
Depth with Stand: 250 mm
Weight (Approximate): 6.70 kg
Miscellaneous
Energy Star: Yes
TCO Certified: Yes
Environmental Certification: TCO Certified 9.0
Energy Efficiency Certification: ENERGY STAR 8.0
Warranty
Limited Warranty: 3 Year
