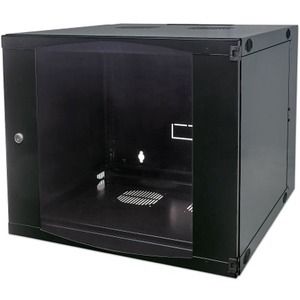

Intellinet 19" Double Section Wallmount Cabinet

Marketing Information

The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or gray (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly ea...sy.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 713740
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: 19" Double Section Wallmount Cabinet
Product Type: Rack Cabinet
Technical Information
Application/Usage:

• LAN Switch
• Patch Panel

Features:

• Reversible Door
• Removable Side Panel

Physical Characteristics
Form Factor: Wall Mountable
Product Color: Black Gray
Product Material:

• Toughened Glass
• SPCC
• Cold Rolled Steel
• Tempered Glass

Static/Stationary Weight Capacity: 30 kg
Height: 327 mm
Width: 540 mm
Depth: 450 mm
Weight (Approximate): 15 kg
Rack Height: 6U
Rack Width: 482.60 mm
Rack Depth: 235 mm
Miscellaneous
Package Contents:

• 19" Double Section Wallmount Cabinet
• 2 Rail Frames
• Top, Bottom, Front, Back & Side Panels
• Installation Hardware Including 10x M6 Sets and 4x Keys

Assembly Required: Yes
Warranty
Limited Warranty: 3 Year
