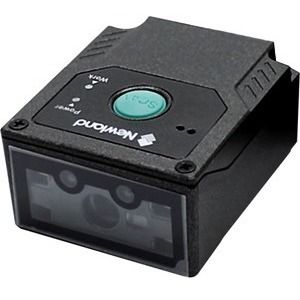

Newland FM430 Barracuda

Marketing Information

The new FM430 Barracuda is Newland's most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It's equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease.

It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.

On top of that, the FM430 Barracuda's programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.

Spec...ifications
Manufacturer: Newland
Manufacturer Part Number: NLS-FM430L-U
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FM430 Barracuda
Product Name: FM430 Barracuda
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• EAN-13
• EAN-8
• UPC-A
• UPC-E
• Code 128
• Code 39
• Codabar
• UCC/EAN 128
• RSS
• ITF
• ITF-14
• ITF6
• Standard 25
• Matrix 25
• COOP 25
• Industrial 25
• Plessey
• MSI Plessey
• Code 11
• Code93
• Code 49
• Code 16K

2D:

• PDF417
• QR Code
• Data Matrix
• AZTEC
• CSC
• Maxicode
• Micro QR
• Micro PDF417
• GM
• Code One

Light Source: Laser
Image Sensor Type: CMOS
Scan Mode: Sense
Depth of Field:

• EAN 13 (13mil) 55-360mm
• Code 39 (5mil) 70-180mm
• PDF417 (6.67mil) 55-160mm
• Data Matrix (10mil) 50-170mm
• QR (15mil) 40-210mm

Scanning Distance: 360 mm
Cable Type Included: USB
Field of View (Horizontal): 51°
Field of View (Vertical): 32°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Drop Specification:

1.5m Drop

Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Processor & Chipset
Processor Model: X1500
Processor Speed: 1 GHz
Network & Communication
Infrared: Yes
Interfaces/Ports
Host Interface:

• Serial
• USB

Power Description
Input Current: 322.70 mA
Standby Current: 83.30 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 24.3 mm
Width: 41.5 mm
Depth: 49.5 mm
Weight (Approximate): 75 g
Miscellaneous
Package Contents:

• FM430 Barracuda
• 2 meter USB extension cable
• Laser Aimer
• white light
• IR sensor

Ingress Protection (IP) Rating: IP54
Application/Usage:

• Industrial
• Transportation
• Ticketing
• Outdoor
• Hospitality
• Logistics
• Retail

Software Supported:

EasySet Configuration Tool

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
