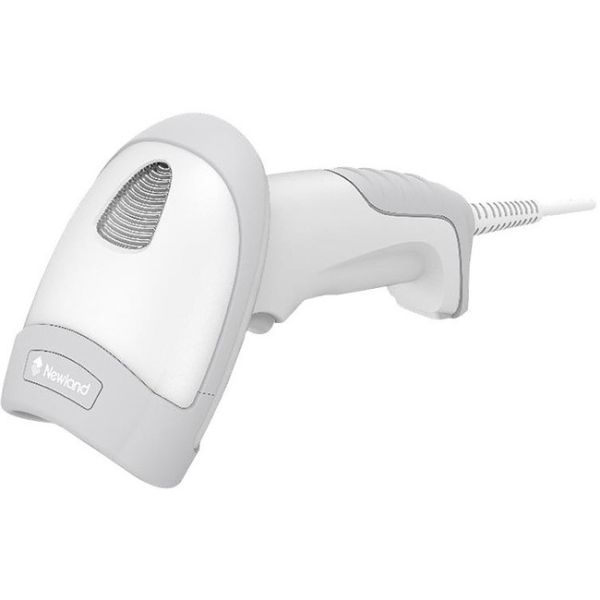

Newland HR32 Marlin Corded HC

Marketing Information

The HR32 Marlin Corded HC is a barcode scanning powerhouse with an antimicrobial coating. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high-resolution codes, with impressive speed and ease.

The ideal handheld solution for scan-intensive use in retail and healthcare.

The HR32 Marlin Corded HC is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high-density ones, with impressive speed and ease. Add in the antimicrobial coating and this device is ready for healthcare or extra safety at your POS.

S...pecifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3280-SF-HC
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: HR32 Marlin II
Product Series: HR32
Product Name: HR32 Marlin Corded HC
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• EAN-13
• EAN-8
• UPC-A
• UPC-E
• ISSN
• ISBN
• Codabar
• Code 128
• Code93
• ITF-6
• ITF-14
• Interleaved 2 of 5
• Industrial 2 of 5
• Standard 2 of 5
• Matrix 2 of 5
• GS1 Databar
• Code 39
• Code 11
• MSI-Plessey
• Plessey

2D:

• PDF417
• QR Code
• Data Matrix
• Aztec
• Maxicode

Light Source: LED
Image Sensor Type: CMOS
Depth of Field:

• EAN 13 (13mil) 45-510mm
• Code 39 (5mil) 75-220mm
• PDF417 (6.67mil) 70-215mm
• Data Matrix (10mil) 50-220mm
• QR (15mil) 20-330mm

Scanning Distance: 510 mm
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 39°
Field of View (Vertical): 24°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:

1.5m Drop

Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Processor & Chipset
Processor Model: X1500
Interfaces/Ports
Host Interface:

• USB
• Serial

Power Description
Maximum Operating Power Consumption: 1.29 W
Input Current: 260.50 mA
Standby Current: 71.30 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: White
Product Color: White
Height: 159 mm
Width: 113.5 mm
Depth: 73.3 mm
Weight (Approximate): 162 g
Miscellaneous
Package Contents:

• HR32 Marlin Corded
• 2 meter USB cable
• Autosense
• Foldable smart stand

Ingress Protection (IP) Rating: IP42
Application/Usage:

• Healthcare
• Retail
• Warehouse
• Hospitality

Software Supported: EasySet Configuration Tool
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
