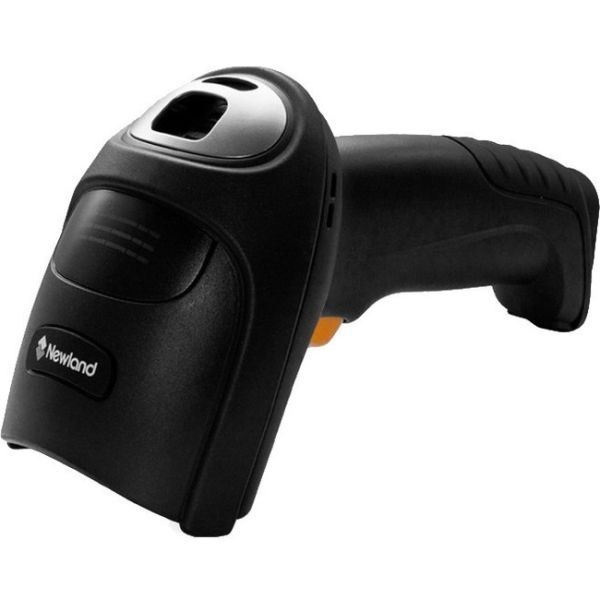

Newland HR52 Bonito Bluetooth
£246.26
Limited Stock: Only 0 available
Newland HR52 Bonito Bluetooth
Newland HR52 Bonito Bluetooth is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Healthcare/Logistics/Retail/Warehouse |
|---|---|
| Host Interface | USB/Serial |
| Product Type | Barcode Scanner |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wireless |
| Form Factor | Handheld |
| Brand Name | Newland |
| Scanning Distance | 555 mm |
| Light Source | Laser |
| Bluetooth | Yes |
| Image Sensor Type | CMOS |
| Product Family | HR52 Bonito |
| Stand Included | Yes |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP54 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR5280-BT-C(U)
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: HR52 Bonito
Product Name...: HR52 Bonito Bluetooth
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
Barcode Symbology Supported:
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 555 mm
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 28°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Drop Specification:
Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.25 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2400 mAh
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 172.5 mm
Width: 77.5 mm
Length: 95.5 mm
Weight (Approximate): 227 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP54
Application/Usage:
Software Supported:
Warranty
Limited Warranty: 3 Year
Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Bluetooth includes a megapixel barcode scanner that reads both 1D and 2D codes with ease.
Accuracy, durability and mobility all in one
With a strong, reliable connection of up to 50 meters from its host, the HR52 Bonito Bluetooth allows you to roam around the shop floor without any constraints.
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR5280-BT-C(U)
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: HR52 Bonito
Product Name...: HR52 Bonito Bluetooth
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- ISSN
- ISBN
- Codabar
- Code 128
- Code93
- ITF-6
- ITF-14
- Interleaved 2 of 5
- Industrial 25
- Standard 25
- Matrix 25
- GS1 Databar
- Code 39
- Code 11
- MSI-Plessey
- Plessey
2D :
- PDF417
- QR Code
- Data Matrix
- Aztec
- Maxicode
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
- EAN 13 (13mil) 50mm-555mm
- Code 39 (5mil) 110mm-240mm
- PDF417 (6.7mil) 90mm-210mm
- Data Matrix (10mil) 90mm-190mm
- QR (15mil) 40mm-360mm
Scanning Distance: 555 mm
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 28°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Drop Specification:
1.8m
Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.25 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:
- USB
- Serial
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2400 mAh
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 172.5 mm
Width: 77.5 mm
Length: 95.5 mm
Weight (Approximate): 227 g
Miscellaneous
Package Contents:
- HR52 Bonito Bluetooth
- Stand/Docking Station
- USB Cable
- Multiplug Adapter
Ingress Protection (IP) Rating: IP54
Application/Usage:
- Healthcare
- Logistics
- Retail
- Warehouse
Software Supported:
EasySet Configuration Tool
Warranty
Limited Warranty: 3 Year
