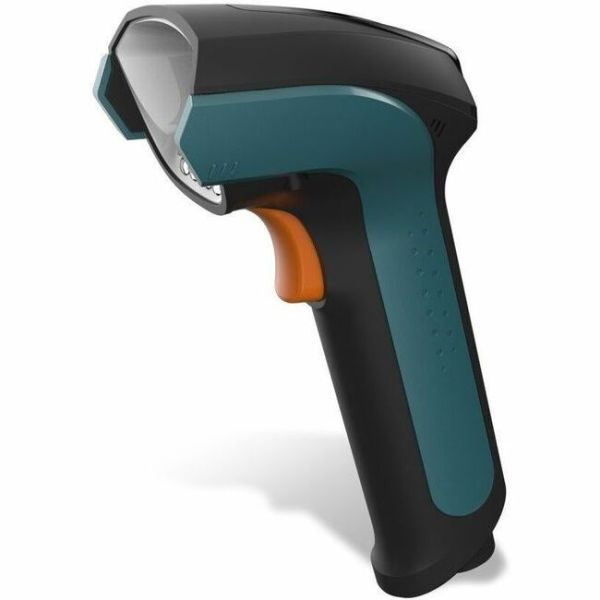

Newland NVH220 Lophius Bluetooth
£342.26
Limited Stock: Only 0 available
Only 1 left
Newland NVH220 Lophius Bluetooth
Newland NVH220 Lophius Bluetooth is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Warehouse/Logistics/Manufacturing/Industrial/Transportation |
|---|---|
| Host Interface | USB/Serial/PS2 |
| Product Type | Barcode Scanner |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wireless |
| Form Factor | Handheld |
| Brand Name | Newland |
| Scanning Distance | 210 mm |
| Light Source | LED |
| Bluetooth | Yes |
| Image Sensor Type | CMOS |
| Ingress Protection (IP) Rating | IP64 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLSNVH220BT
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: NVH220 Lophius
Product Name: NVH220 Lophius Bluetooth
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
Light Source: LED
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 210 mm
Features:
Cable Type Included: USB
Field of View (Horizontal): 41°
Field of View (Vertical): 31°
Reading Angle (Skew): 50°
Reading Angle (Pitch): 50°
Reading Angle (Roll): 360°
Motion Tolerance: 2000 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 0.51 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Direct Part Marking (DPM) Decoding: Yes
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Air Electrostatic Discharge (+/-): 16kV
Contact Electrostatic Discharge (+/-): 8kV
Aiming: 532 mm
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:
Power Description
Maximum Operating Power Consumption: 2.25 W
Input Current: 562 mA
Standby Current: 116 mA
Battery Information
Battery Included: Yes
Battery Capacity: 3500 mAh
Maximum Battery Run Time: 23 Hour
Maximum Battery Recharge Time: 2 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Durability:
Height: 169 mm
Width: 68 mm
Depth: 105 mm
Weight (Approximate): 220 g
Miscellaneous
Package Contents:NVH220 Lophius Bluetooth NVH220B_CD220 docking station CBL042UA USB cable
Ingress Protection (IP) Rating: IP64
Application/Usage:
Software Supported:
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Manufacturer: Newland
Manufacturer Part Number: NLSNVH220BT
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: NVH220 Lophius
Product Name: NVH220 Lophius Bluetooth
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
- 1D
- 2D
Light Source: LED
Image Sensor Type: CMOS
Depth of Field:
- Depth of Field EAN 13 (13mil) - 25mm-160mm
- Depth of Field Code 39 (20mil) - 35mm-210mm
- Depth of Field Data...Matrix (10mil) - 0mm-125mm
- Depth of Field QR (20mil) - 20mm-180mm
Scanning Distance: 210 mm
Features:
- Notification LED
- Vibration
Cable Type Included: USB
Field of View (Horizontal): 41°
Field of View (Vertical): 31°
Reading Angle (Skew): 50°
Reading Angle (Pitch): 50°
Reading Angle (Roll): 360°
Motion Tolerance: 2000 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:
1.8m
Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 0.51 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Direct Part Marking (DPM) Decoding: Yes
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Air Electrostatic Discharge (+/-): 16kV
Contact Electrostatic Discharge (+/-): 8kV
Aiming: 532 mm
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:
- USB
- Serial
- PS2
Power Description
Maximum Operating Power Consumption: 2.25 W
Input Current: 562 mA
Standby Current: 116 mA
Battery Information
Battery Included: Yes
Battery Capacity: 3500 mAh
Maximum Battery Run Time: 23 Hour
Maximum Battery Recharge Time: 2 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Durability:
- Dust Resistant
- Water Resistant
Height: 169 mm
Width: 68 mm
Depth: 105 mm
Weight (Approximate): 220 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP64
Application/Usage:
- Warehouse
- Logistics
- Manufacturing
- Industrial
- Transportation
Software Supported:
- newland EasySet
- newland Nset
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
