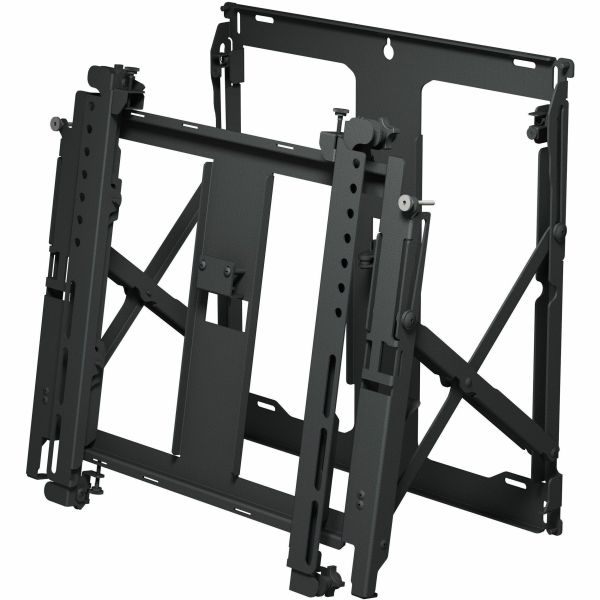

SmartMount® Full Service Thin Video Wall Mount with Quick Release for 46'' to 65'' Displays

Marketing Information

The DS-VW755S Slim Full Service Video Wall Mount with quick release offers an easy to install solution for landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility demanded by today's integrator. Tool-less micro adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display. Easy display access and quick serviceability make this mount the ultimate video wall mounting solution.

....open('//content.etilize.com/mini-site/en_uk/1028757744.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: DS-VW755S
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: SmartMount®
Product Series: DS-VW755S
Product Model: DS-VW755S
Product Name: Full Service Thin Video Wall Mount with Quick Release for 46'' to 65'' Displays
Packaged Quantity: 1 Unit
Product Type: Wall Mount
Product Information
Device Supported:

• Video Wall
• Display

Maximum Load Capacity: 36.29 kg
Minimum Screen Size Supported: 46" (116.84 cm)
Maximum Screen Size Supported: 65" (165.10 cm)
Minimum Adjustable Depth: 4.57 cm (1.80")
Maximum Adjustable Depth: 6.60 cm (2.60")
Features:

• Quick Release Mechanism
• Tilt
• Adjustable
• Extendable
• Cable Management
• Tool-less Micro-Adjustment
• Lockable

Orientation: Landscape/Portrait
Mount Profile: Recessed
Mount Function: Video Wall
Mount Surface: Wall
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Textured
VESA Mount Compatible: Yes
Mounting Pattern:

• 400 x 400
• 200 x 200
• 400 x 650

Form Factor: Wall Mountable
Height: 52.07 cm (20.50")
Width: 54.46 cm (21.44")
Depth: 6.68 cm (2.63")
Weight (Approximate): 9.48 kg
Miscellaneous
Package Contents:

• Full Service Thin Video Wall Mount with Quick Release for 46'' to 65'' Displays
• Wall Mount Assembly
• Mounting Attachment Rails & Fasteners

Certifications & Standards: TAA, VESA
Manufacturer Product Class: Wall, Ultra-Thin
Assembly Required: Yes
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
