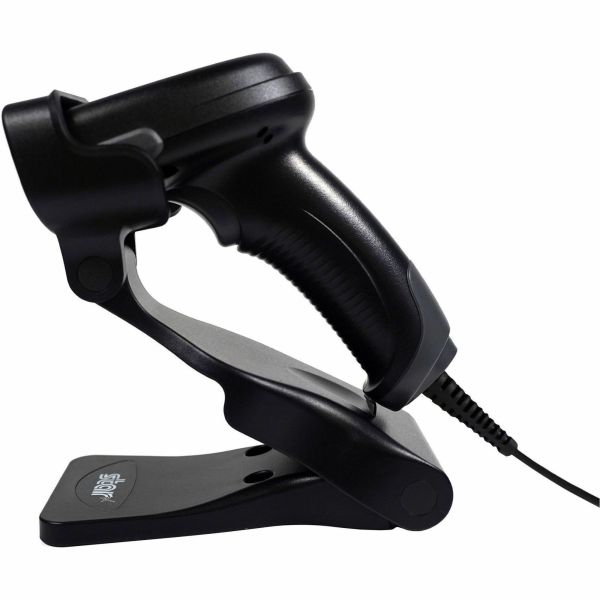

Star Micronics BSH-20U Handheld Wired USB 1D/2D Barcode Scanner

Marketing Information

Handheld USB Barcode Scanner

The BSH-20U is a versatile, cost-effective 1D/2D handheld USB barcode scanner equipped with a high-performance CPU. It excels in scanning high-density, high-volume, and distorted barcodes on various surfaces, including paper, uneven media, or digital displays. Designed for durability, it features an IP42-rated construction and drop-resistant housing, ensuring resilience in active business settings. It's ideal for a range of markets like retail, hospitality, and the healthcare sector and is compatible with any POS system. It supports easy plug-and-play functionality with iOS, Android, and Windows devices. For businesses seeking advanced scanning capabilities, the BSH-20U is the efficient, reliable, ...and economical choice.

Specifications
Manufacturer: Star Micronics, Inc
Manufacturer Part Number: 37950920
Manufacturer Website Address: http://www.starmicronics.com
Brand Name: Star Micronics
Product Model: BSH-20U
Product Name: BSH-20U Handheld Wired USB 1D/2D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Light Source: LED
Image Sensor Type: CMOS
Scan Mode: Trigger
Scanning Distance: 260 mm
Features:

• Beep
• Notification LED

Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Interfaces/Ports
Host Interface:

• USB
• Serial

Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 69 mm
Width: 103 mm
Length: 146 mm
Weight (Approximate): 125 g
Miscellaneous
Compatibility:

Star Micronics:

• POS system
• mC-Print2/3 Credit Card Receipt Printer
• mPOP Receipt Printer and Cash Drawer Combo

Ingress Protection (IP) Rating: IP42
Application/Usage:

• Retail
• Hospitality
• Healthcare

Platform Supported:

• iOS
• Android
