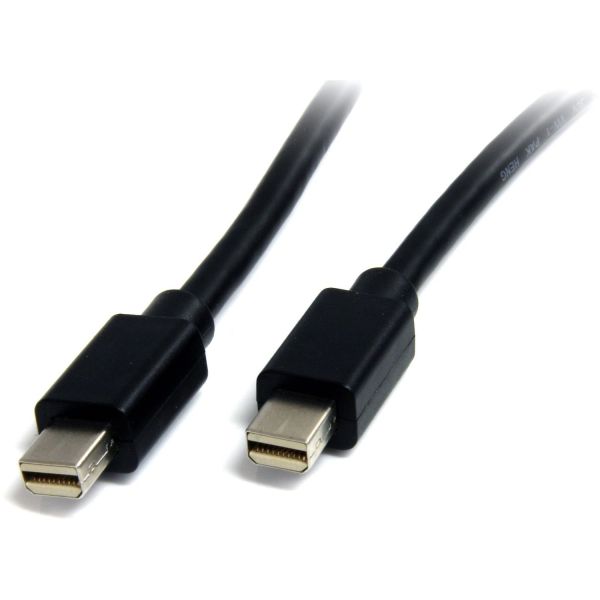

StarTech.com 1m Mini DisplayPort 1.2 Cable M/M - Mini DisplayPort 4k

Marketing Information

The MDISP1M 1m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.

The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The MDISP1M is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Please note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MDISP1M
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1m Mini DisplayPort 1.2 Cable M/M - Mini DisplayPort 4k
Packaged Quantity: 1
Packing: Bagged
Product Type: A/V Cable
Technical Information
Cable Type: Mini DisplayPort
Cable Length: 1 m
Connector Type on First End: Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:

• Nickel
• Gold

Conductor: Copper
Shielding: Yes
Jacket Type: CMG
Device Supported:

• Audio/Video Device
• Monitor

American Wire Gauge: 30 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2400
Features:

• Multi-Stream Transport (MST) Support
• EMI Protection

Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 39.9 g
Shipping Height: 11.94 mm
Shipping Width: 199.90 mm
