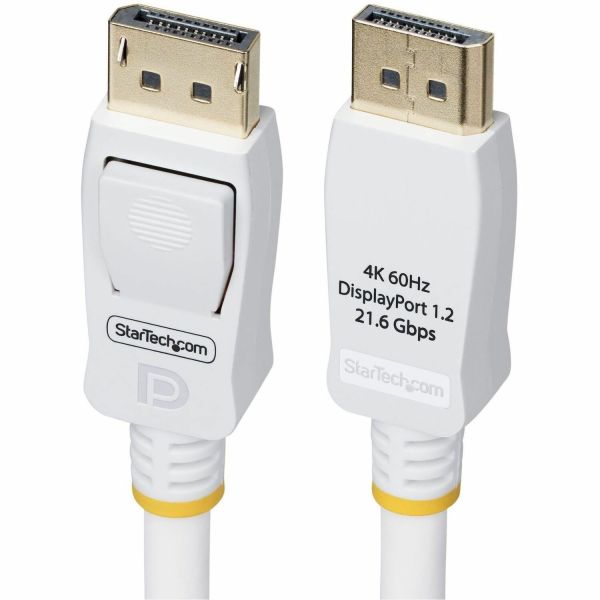

StarTech.com 10ft DisplayPort Cable - White

Marketing Information

Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket that ...routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

This DisplayPort cable supports full DP 1.2 features:

• Resolutions up to 4K 60Hz using a compatible DP source and display
• 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Up to 8 Uncompressed Digital Audio Channels
• 3D Stereo support for 3D video formats
• Backward compatible with previous DP versions

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DP12-CABLE-10FTW
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 10ft DisplayPort Cable - White
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 3.05 m
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video
Connector Gender on First End: Male
Connector on First End Details: 1 x 20 pin Displayport 1.2 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20 pin Displayport 1.2 Digital Audio/Video - Male
Connector Plating: Nickel
Shielding: Yes
Jacket Type: VW-1
Device Supported:

• Audio/Video Device
• Monitor
• Docking Station
• Workstation
• Display
• Computer

American Wire Gauge: 28 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2160
Number of Conductors: 19
Features:

• Braided
• Passive
• HDCP 1.3
• Multi-Stream Transport (MST) Support
• High Bit Rate 2 (HBR2)
• Halogen-free
• Durable
• Strain Relief
• EMI Protection
• Latching Connector
• Stereoscopic 3D Support
• Flexible

Physical Characteristics
Color Family: White
Product Color: White
Product Material: ABS
Shielding Material: Aluminum Mylar Foil
Jacket Material: Thermoplastic Elastomer (TPE)
Weight (Approximate): 192.8 g
Warranty
Limited Warranty: Lifetime
