StarTech.com USB Adapter

Marketing Information

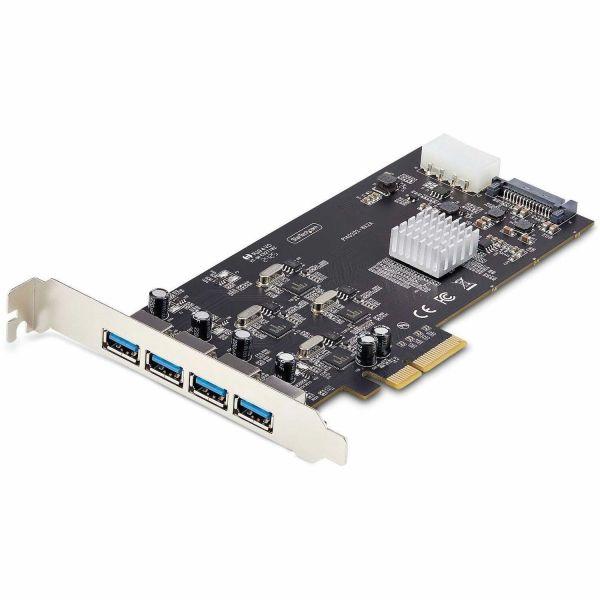

Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection.

Dedicated USB 5Gbps Per Port

When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps.

Charge USB Devices

This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1....5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient.

Compatibility

The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. The expansion card supports hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: P5Q4A-USB-CARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB Adapter
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x4
Media & Performance
Data Transfer Rate: 640 MB/s
UASP Support: Yes
Interfaces/Ports
USB Version: 3.2 Gen 1
Total Number of USB Ports: 4
Number of SATA Ports: 1
USB Connector Type: Type-A
Software
Operating System Supported:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2008 R2
• Windows Server 2012 R2
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• macOS
• Linux 2.6.31

Physical Characteristics
Color Family: Black
Product Color: Black
Height: 17.8 mm
Width: 119.4 mm
Length: 167.6 mm
Weight (Approximate): 99.2 g
Miscellaneous
Package Contents:

• USB Adapter
• 1 x Quick-Start Guide

Application/Usage:

• Server
• Desktop
• Hard Drive

Platform Supported: PC
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
